Part Image

DS15BR400TVSX/NOPB - Texas Instruments

Description: LVDS Interface IC 4ch LVDS Buffer/Repeater

Download DS15BR400TVSX/NOPB Model

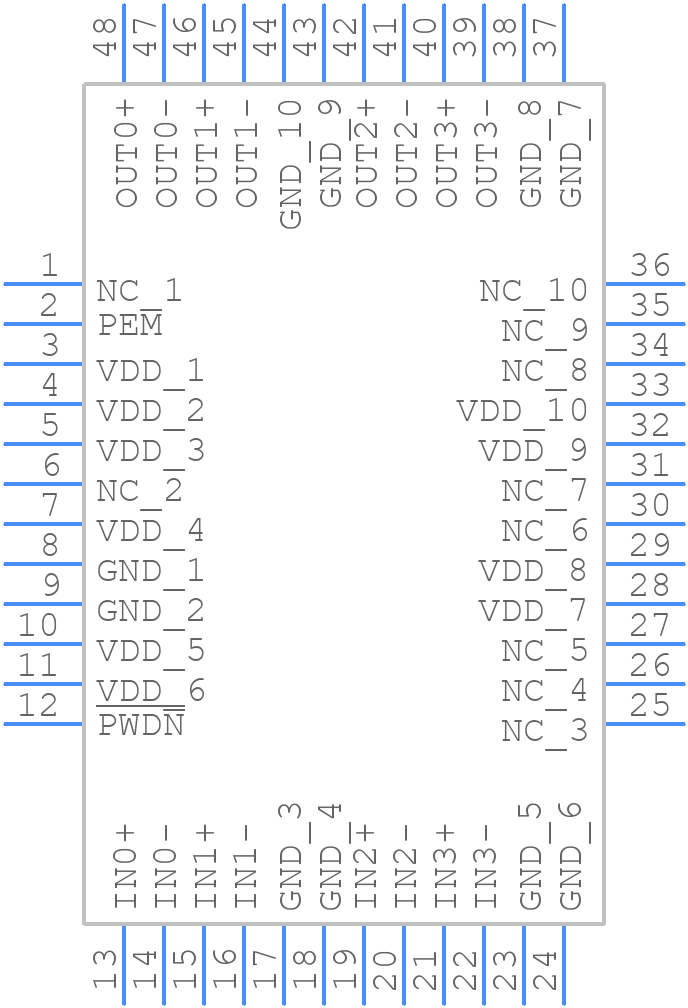

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DS15BR400TVSX/NOPB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48)_1
click to zoom
3D Models
DS15BR400TVSX/NOPB - Texas Instruments  - 3D model - Quad Flat Packages - PFB (S-PQFP-G48)_1
click to zoom

DS15BR400TVSX/NOPB Details

  • Manufacturer Part Number:

    DS15BR400TVSX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-48

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.00001 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    2 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    215 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    2 ns

  • Width:

    7 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS15BR400TVSX/NOPB Overview

Use the download button to access the DS15BR400TVSX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS15B, or try a keyword search, such as Line Driver or Receivers

Parts related to DS15BR400TVSX/NOPB

Showing 0 results

DS15BR400TVSX/NOPB Alternates

Showing results

Image Part Number Model
Part Image DS15BR400TVSX National Semiconductor Corporation

IC LINE TRANSCEIVER, PQFP48, TQFP-48, Line Driver or Receiver

Part Image DS15BR400TVS National Semiconductor Corporation

IC LINE TRANSCEIVER, PQFP48, TQFP-48, Line Driver or Receiver

Part Image DS15BR400TVS Texas Instruments

4-channel LVDS buffer/repeater with pre-emphasis 48-TQFP -40 to 85
