Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
To ensure reliable operation in high-temperature environments, it's recommended to follow proper thermal design and layout guidelines, such as providing adequate heat sinking and airflow. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
The maximum cable length supported by the DS15BR401TVS/NOPB depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length as short as possible, and using cables with a characteristic impedance of 100 ohms or less.
To troubleshoot issues with the DS15BR401TVS/NOPB, it's recommended to use oscilloscopes or logic analyzers to monitor the signal quality and data transmission. Additionally, checking the PCB layout and signal routing, as well as ensuring proper termination and impedance matching, can help identify and resolve issues.
The DS15BR401TVS/NOPB is designed to be compatible with other Texas Instruments devices and third-party components that support the same interface standards, such as PCIe or SATA. However, it's recommended to verify compatibility and perform thorough testing before integrating the device into a larger system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS15BR401TVS/NOPB Overview

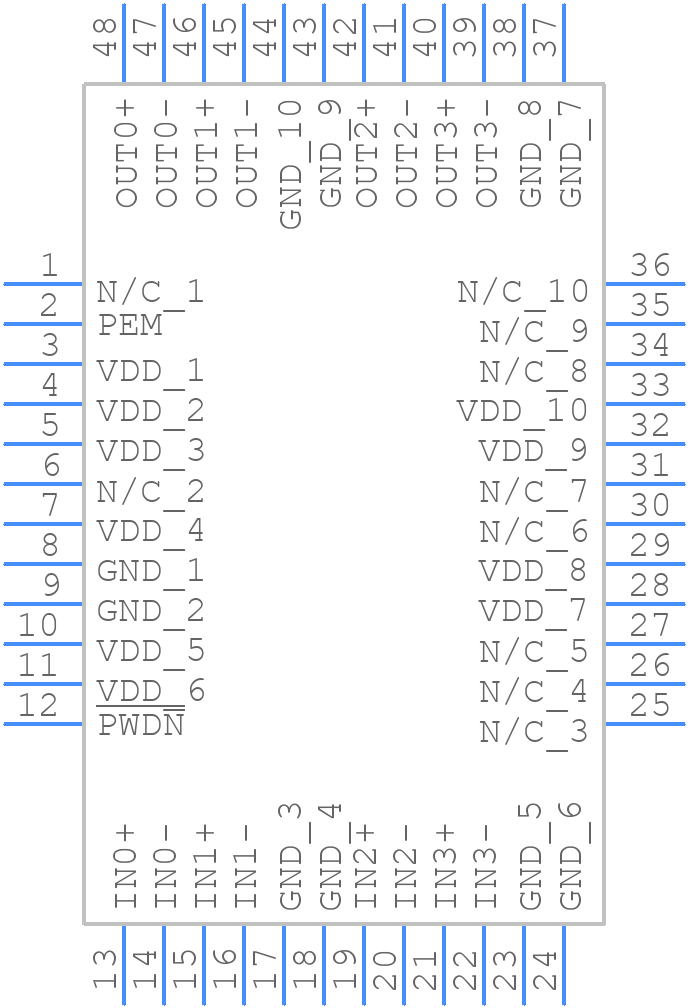

Use the download button to access the DS15BR401TVS/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS15B,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
