DS15EA101SQ/NOPB - Texas Instruments

Description: DS15EA101 0.15 to 1.5 Gbps Adaptive Cable Equalizer with LOS Detection

Download DS15EA101SQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

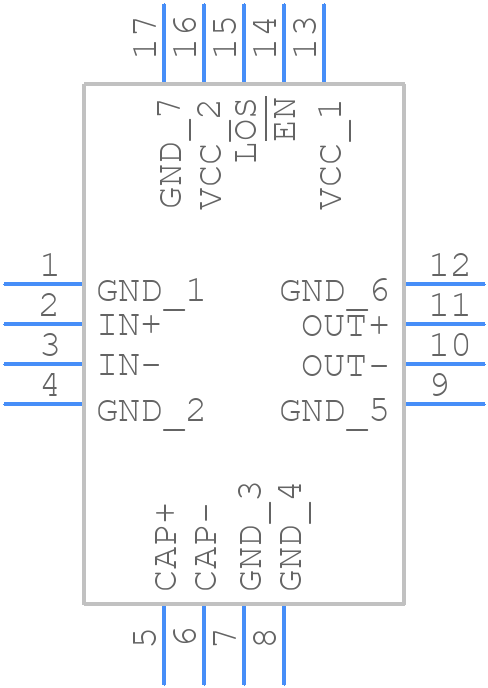

DS15EA101SQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS15EA101SQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGH-16
click to zoom
3D Models
DS15EA101SQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RGH-16
click to zoom

DS15EA101SQ/NOPB Details

  • Manufacturer Part Number:

    DS15EA101SQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.077 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LINE EQUALIZER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DS15EA101SQ/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the DS15EA101SQ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The DS15EA101SQ requires a single 3.3V power supply. A 0.1uF decoupling capacitor should be placed as close as possible to the device, and a 10uF bulk capacitor should be placed near the power supply. The power supply should be able to provide a minimum of 100mA of current.
  • The DS15EA101SQ supports cable lengths up to 100 meters at a data rate of 100Mbps. However, the maximum cable length may vary depending on the specific application and the quality of the cable.
  • To troubleshoot issues with the DS15EA101SQ, start by checking the power supply and decoupling capacitors. Verify that the device is properly configured and that the input and output signals are correct. Use an oscilloscope to check the signal integrity and look for any signs of signal degradation or noise.
  • Yes, the DS15EA101SQ is rated for industrial temperature ranges from -40°C to 85°C. However, the device's performance may vary at extreme temperatures, and the user should consult the datasheet for specific temperature-related specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS15EA101SQ/NOPB Overview

Use the download button to access the DS15EA101SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS15E, or try a keyword search, such as Analog Transmission Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
