DS15EA101SQE/NOPB - Texas Instruments

Description: Texas Instruments DS15EA101SQE/NOPB, Adaptive Cable Equaliser 200m -0.5 → 3.6 V 16-Pin LLP

Download DS15EA101SQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

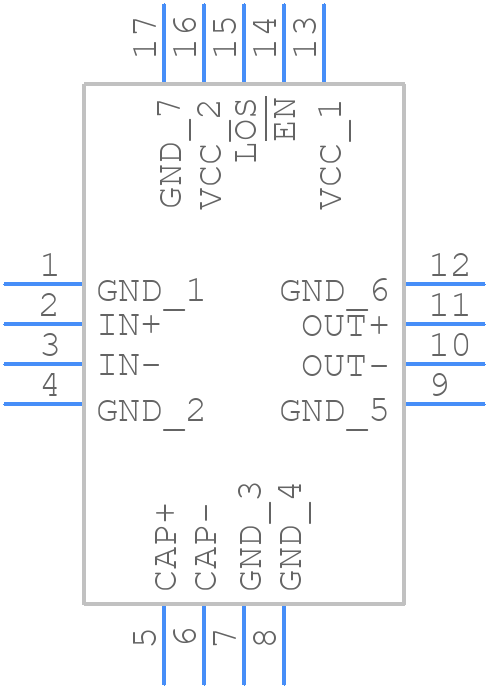

DS15EA101SQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS15EA101SQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGH0016A
click to zoom
3D Models
DS15EA101SQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RGH0016A
click to zoom

DS15EA101SQE/NOPB Details

  • Manufacturer Part Number:

    DS15EA101SQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.077 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LINE EQUALIZER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DS15EA101SQE/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter out high-frequency noise.
  • Ensure good thermal management by providing adequate heat sinking and airflow. Use a thermal interface material (TIM) to improve heat transfer between the device and the heat sink. Monitor the device's junction temperature and adjust the system design accordingly.
  • The limited bandwidth of the DS15EA101SQE/NOPB may affect the signal integrity and data transmission rates in your system. Consider using signal conditioning circuits or equalization techniques to compensate for the bandwidth limitations.
  • Use an oscilloscope to analyze the signal waveforms and identify any distortions or anomalies. Check the power supply and ground connections for noise and ensure that the device is properly terminated. Verify that the system is operating within the recommended specifications.
  • Yes, the DS15EA101SQE/NOPB can be used in redundant or fault-tolerant systems. However, ensure that the system design takes into account the device's limitations and potential failure modes. Implement redundant signal paths and error detection mechanisms to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS15EA101SQE/NOPB Overview

Use the download button to access the DS15EA101SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS15E, or try a keyword search, such as Other Telecom ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
