DS16EV5110ASQ/NOPB - Texas Instruments

Description: Video Equalizer (3D+C) for DVI, HDMI Source/Repeater/Sink Applications

Download DS16EV5110ASQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

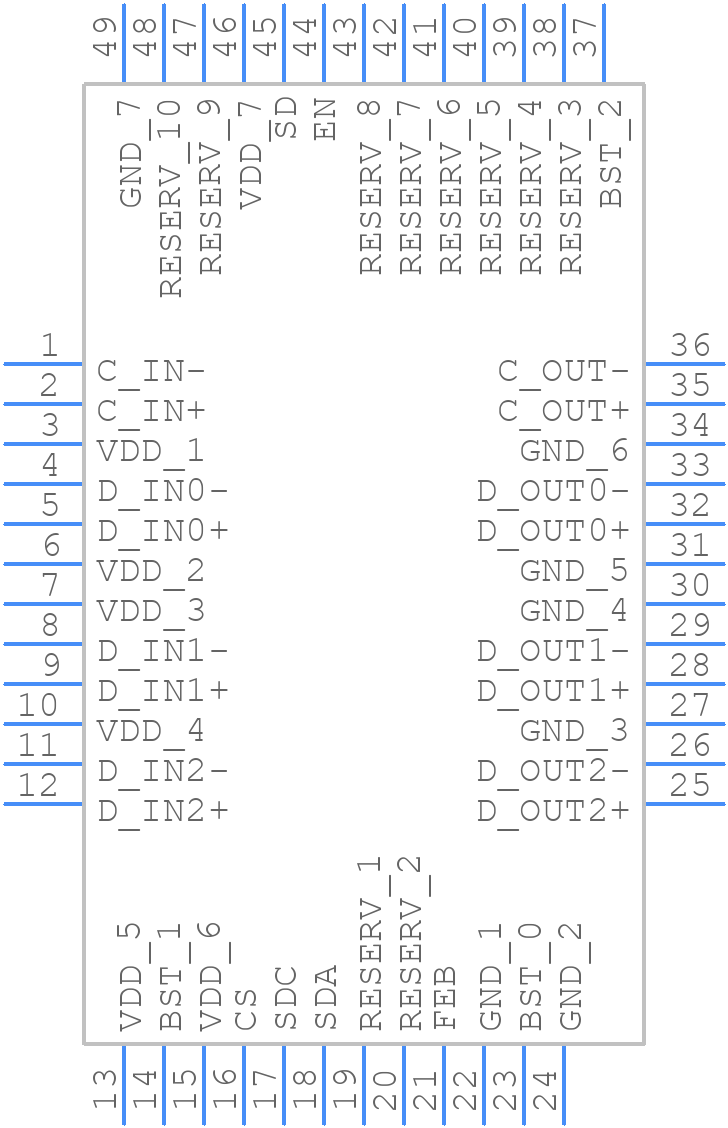

DS16EV5110ASQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS16EV5110ASQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NJU0048D
click to zoom
3D Models
DS16EV5110ASQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - NJU0048D
click to zoom

DS16EV5110ASQ/NOPB Details

  • Manufacturer Part Number:

    DS16EV5110ASQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DS16EV5110ASQ/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode filter or a ferrite bead to reduce EMI.
  • Use a heat sink to keep the junction temperature below 125°C. Ensure good airflow around the device, and consider using a thermal interface material to improve heat transfer.
  • The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the DS16EV5110ASQ/NOPB supports cable lengths up to 100 meters at 10 Gbps.
  • Use an oscilloscope to monitor the signal quality and check for signal integrity issues. Verify that the power supply is stable and within the recommended range. Check the PCB layout and ensure that it meets the recommended guidelines.
  • Yes, the DS16EV5110ASQ/NOPB can be used in redundant or fail-safe systems. However, additional circuitry and software may be required to implement the redundancy or fail-safe mechanism.
