DS1818R-10+T&R - Analog Devices

Description: Processor Supervisor 2.88V 35uA Maxim DS1818R-10+T&R, Voltage Supervisor 2.8 to 2.97 V, Reset Input, 3-Pin SOT-23

Download DS1818R-10+T&R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

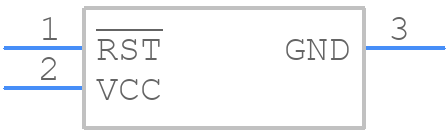

Symbol
DS1818R-10+T&R - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1818R-10+T&R - Analog Devices PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SOT-23-ren12
click to zoom
3D Models
DS1818R-10+T&R - Analog Devices - 3D model - SOT23 (3-Pin) - SOT-23-ren12
click to zoom

DS1818R-10+T&R Details

  • Manufacturer Part Number:

    DS1818R-10+T&R

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    3-SOT_23-N/A

  • Package Description:

    ROHS COMPLIANT, SOT-23, 3 PIN

  • Pin Count:

    3

  • Manufacturer Package Code:

    3-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-11-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Length:

    2.92 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TO-236

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.12 mm

  • Supply Current-Max (Isup):

    0.035 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.88V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.3 mm

DS1818R-10+T&R Frequently Asked Questions (FAQs)

  • A good PCB layout for the DS1818R-10+T&R involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The DS1818R-10+T&R requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The recommended clock frequency for the DS1818R-10+T&R is 10MHz. The clock signal should have a duty cycle of 40% to 60% and a rise/fall time of less than 5ns. It's also recommended to use a clock signal with low jitter (<100ps) to ensure optimal performance.
  • The DS1818R-10+T&R can be interfaced with a microcontroller or FPGA using a standard SPI interface. The device requires a 3-wire SPI interface (SCK, MOSI, and MISO) and can operate in slave mode. The microcontroller or FPGA should provide the clock signal and control the data transfer.
  • The DS1818R-10+T&R has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's recommended to keep the device within a temperature range of -40°C to 85°C. A thermal pad on the bottom of the package helps to dissipate heat, and it's recommended to use a thermal interface material (TIM) to improve heat transfer.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1818R-10+T&R Overview

Use the download button to access the DS1818R-10+T&R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS181, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
