DS1830AU+ - Analog Devices

Description: Maxim DS1830AU+, Reset Circuit, Maximum of 3.3 V, Reset Input, 8-Pin μSOP

Download DS1830AU+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

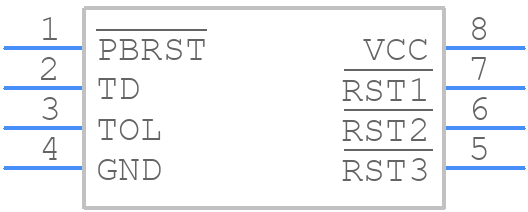

DS1830AU+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1830AU+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - umax-8
click to zoom
3D Models
DS1830AU+ - Analog Devices - 3D model - Small Outline Packages - umax-8
click to zoom

DS1830AU+ Details

  • Manufacturer Part Number:

    DS1830AU+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    0.118 INCH, ROHS COMPLIANT, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-04-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.06V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DS1830AU+ Frequently Asked Questions (FAQs)

  • The DS1830AU+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the device and the crystal oscillator.
  • To ensure accurate temperature measurement, it is essential to follow proper calibration procedures, use a high-quality crystal oscillator, and minimize thermal gradients on the PCB. Additionally, the device should be operated within its specified temperature range, and the temperature sensor should be kept away from heat sources.
  • The DS1830AU+ can tolerate a maximum frequency deviation of ±100 ppm for the crystal oscillator. Exceeding this limit may affect the device's accuracy and stability.
  • The DS1830AU+ is designed to work with a 32.768 kHz crystal oscillator frequency. While it may be possible to use a different frequency, it is not recommended as it may affect the device's accuracy and stability. If a different frequency is required, it is recommended to consult with Analog Devices Inc. for guidance.
  • The POR and BOR features are designed to ensure the device resets properly during power-up and brown-out conditions. It is essential to follow the recommended reset circuitry and ensure that the reset signal is properly debounced to prevent unwanted resets.
