DS1832+ - Analog Devices

Description: Maxim DS1832+, Reset Circuit, Maximum of 3.3 V, WDT, Reset Input, 8-Pin PDIP

Download DS1832+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

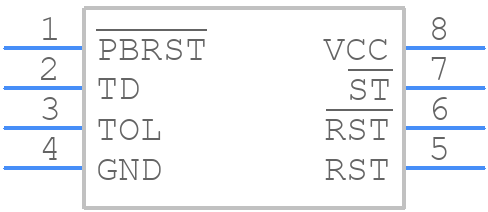

Symbol
DS1832+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1832+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 PDIP+
click to zoom
3D Models
DS1832+ - Analog Devices - 3D model - Dual-In-Line Packages - 8 PDIP+
click to zoom

DS1832+ Details

  • Manufacturer Part Number:

    DS1832+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-PDIP-300_MIL

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-11-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    MNL RST:Y;PW FL IO:N;PRG RST DLY:Y;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max (Isup):

    0.035 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.55:2.88V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

DS1832+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the DS1832+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the DS1832+ and the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure accurate temperature measurement with the DS1832+, it's essential to calibrate the device, use a high-quality thermistor, and ensure good thermal contact between the thermistor and the device being measured. Additionally, the DS1832+ should be operated within its specified temperature range, and the device should be shielded from electromagnetic interference.
  • The DS1832+ can support clock frequencies up to 100 kHz, but the maximum frequency is dependent on the specific application and the quality of the crystal oscillator used. It's recommended to consult the datasheet and application notes for specific guidance on clock frequency selection.
  • Yes, the DS1832+ can be used in a multi-master I2C bus configuration, but it requires careful consideration of the bus arbitration and collision detection mechanisms to ensure reliable operation. It's recommended to consult the I2C bus specification and the DS1832+ datasheet for specific guidance on multi-master bus operation.
  • To troubleshoot communication issues with the DS1832+, it's recommended to check the I2C bus voltage levels, clock frequency, and signal integrity. Additionally, verify that the DS1832+ is properly addressed and that the I2C bus is not overloaded. It's also recommended to use a logic analyzer or oscilloscope to debug the I2C bus signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1832+ Overview

Use the download button to access the DS1832+ schematic symbol, PCB footprint, and 3D model.
