DS1834AS+ - Analog Devices

Description: DS1834AS+, Voltage Supervisor 2-channel 2.8 → 2.97 V, 4.5 → 4.75 V Active Low, Open Drain, reset 8-Pin

Download DS1834AS+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

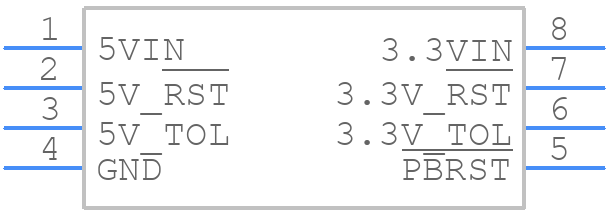

DS1834AS+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1834AS+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC (150-mil)
click to zoom
3D Models
DS1834AS+ - Analog Devices - 3D model - Small Outline Packages - 8-Pin SOIC (150-mil)
click to zoom

DS1834AS+ Details

  • Manufacturer Part Number:

    DS1834AS+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-07-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.55,2.88V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DS1834AS+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the DS1834AS+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure accurate temperature measurement, it is essential to follow proper thermal design practices, such as using a thermally conductive material for the PCB, minimizing thermal gradients, and avoiding heat sources near the device. Additionally, calibrating the device and using a high-accuracy voltage reference can improve measurement accuracy.
  • The maximum cable length for the 1-Wire interface of the DS1834AS+ depends on the cable type, capacitance, and noise environment. As a general guideline, cable lengths up to 100 meters are possible, but it is recommended to use a repeater or a 1-Wire hub for longer cable lengths or noisy environments.
  • Yes, the DS1834AS+ can be used in a multi-drop configuration, where multiple devices are connected to a single 1-Wire bus. However, it is essential to ensure that each device has a unique ROM code and that the bus is properly terminated to prevent signal reflections.
  • The DS1834AS+ has a built-in power-on reset circuit, which ensures that the device resets properly during power-up. However, it is recommended to follow a controlled power-up sequencing, where the voltage supply is ramped up slowly to prevent voltage spikes and ensure proper device operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1834AS+ Overview

Use the download button to access the DS1834AS+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS183, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
