DS1834AS+T&R - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - DS1834AS+T&R - MPU Supervisor, 2 Monitors, 1.2V-5.5V supply, Active-Low, Open-Drain, 4.63V threshold, NSOIC-8

Download DS1834AS+T&R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

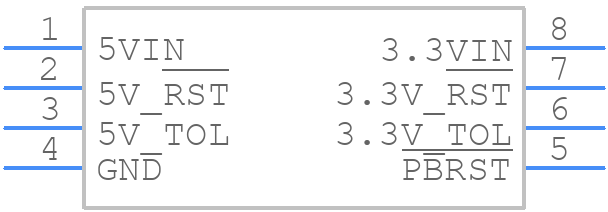

DS1834AS+T&R - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1834AS+T&R - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - soic-ren7
click to zoom
3D Models
DS1834AS+T&R - Analog Devices - 3D model - Small Outline Packages - soic-ren7
click to zoom

DS1834AS+T&R Details

  • Manufacturer Part Number:

    DS1834AS+T&R

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-07-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.55,2.88V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DS1834AS+T&R Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the DS1834AS+T&R involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • To ensure the accuracy of the temperature measurement, it's essential to calibrate the device, use a high-accuracy crystal oscillator, and minimize thermal gradients on the PCB. Additionally, the device should be mounted in a way that minimizes thermal coupling to other components, and the temperature sensor should be placed in a location that accurately represents the temperature of the system.
  • The maximum clock frequency that can be used with the DS1834AS+T&R is 100 kHz. However, the device can operate at frequencies up to 200 kHz, but with reduced accuracy and stability.
  • The POR and BOR features of the DS1834AS+T&R can be handled by using an external reset circuit or by using the device's internal reset circuitry. The internal reset circuitry can be enabled by connecting the RST pin to VCC, and the device will automatically reset when the power supply voltage falls below the brown-out threshold.
  • The recommended power supply decoupling for the DS1834AS+T&R involves using a 10 μF ceramic capacitor in parallel with a 100 nF ceramic capacitor, both connected between the VCC pin and the GND pin. This helps to filter out noise and reduce the impact of power supply variations on the device's performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1834AS+T&R Overview

Use the download button to access the DS1834AS+T&R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS183, or try a keyword search, such as Power Management Circuits
