DS1834AU+ - Analog Devices

Description: Maxim DS1834AU+, Dual Voltage Supervisor, 3 → 5 V, Reset Input, 8-Pin μMAX

Download DS1834AU+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

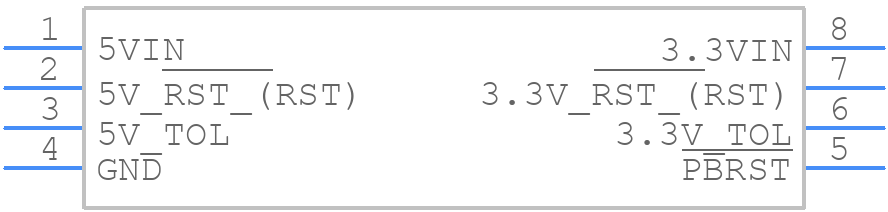

DS1834AU+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1834AU+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - umax-8
click to zoom
3D Models
DS1834AU+ - Analog Devices - 3D model - Small Outline Packages - umax-8
click to zoom

DS1834AU+ Details

  • Manufacturer Part Number:

    DS1834AU+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    0.118 INCH, ROHS COMPLIANT, MICRO, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-07-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC
