DS2003TM/NOPB - Texas Instruments

Description: High Current/Voltage Darlington Driver

Download DS2003TM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

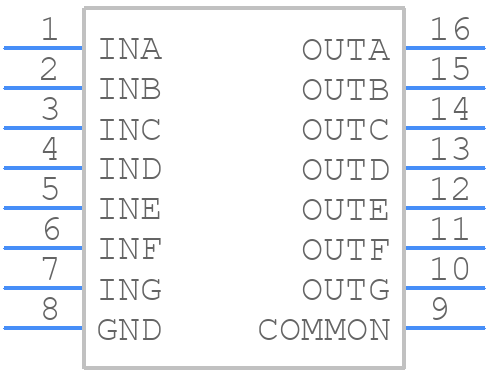

DS2003TM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS2003TM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DS2003TM/NOPB
click to zoom
3D Models
DS2003TM/NOPB - Texas Instruments - 3D model - Small Outline Packages - DS2003TM/NOPB
click to zoom

DS2003TM/NOPB Details

  • Manufacturer Part Number:

    DS2003TM/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Collector Current-Max (IC):

    0.5 A

  • Collector-Emitter Voltage-Max:

    55 V

  • Configuration:

    COMPLEX

  • JEDEC-95 Code:

    MS-012AC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    7

  • Number of Terminals:

    16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DS2003TM/NOPB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DS2003TM/NOPB is -40°C to 85°C.
  • To ensure reliable data transmission, ensure that the transmission line is properly terminated, and the signal amplitude is within the recommended range. Also, use a common-mode choke or a ferrite bead to filter out electromagnetic interference (EMI).
  • The DS2003TM/NOPB supports data rates up to 100 Mbps.
  • To handle EMI, use a common-mode choke or a ferrite bead to filter out electromagnetic interference. Also, ensure that the transmission line is properly shielded and terminated.
  • The power consumption of the DS2003TM/NOPB is typically around 15mA at 3.3V supply voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS2003TM/NOPB Overview

Use the download button to access the DS2003TM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS200, or try a keyword search, such as Small Signal Bipolar Transistors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
