Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
The DS22EV5110SQ/NOPB is rated for operation up to 85°C, but it's essential to ensure proper thermal management, such as using a heat sink or thermal interface material, and following the recommended operating conditions and power dissipation guidelines.
The maximum cable length supported by the DS22EV5110SQ/NOPB depends on the specific application and signal frequency. As a general guideline, Texas Instruments recommends keeping cable lengths as short as possible, but up to 10 meters is typically supported at lower frequencies.
To troubleshoot issues with the DS22EV5110SQ/NOPB, use a combination of tools such as oscilloscopes, logic analyzers, and signal generators to analyze the signal quality and integrity. Also, review the datasheet and application notes for guidance on signal conditioning, termination, and clocking.
The DS22EV5110SQ/NOPB is designed for point-to-point connections, but it can be used in multi-point or daisy-chained configurations with proper signal conditioning and termination. However, this may require additional components and careful signal integrity analysis.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS22EV5110SQ/NOPB Overview

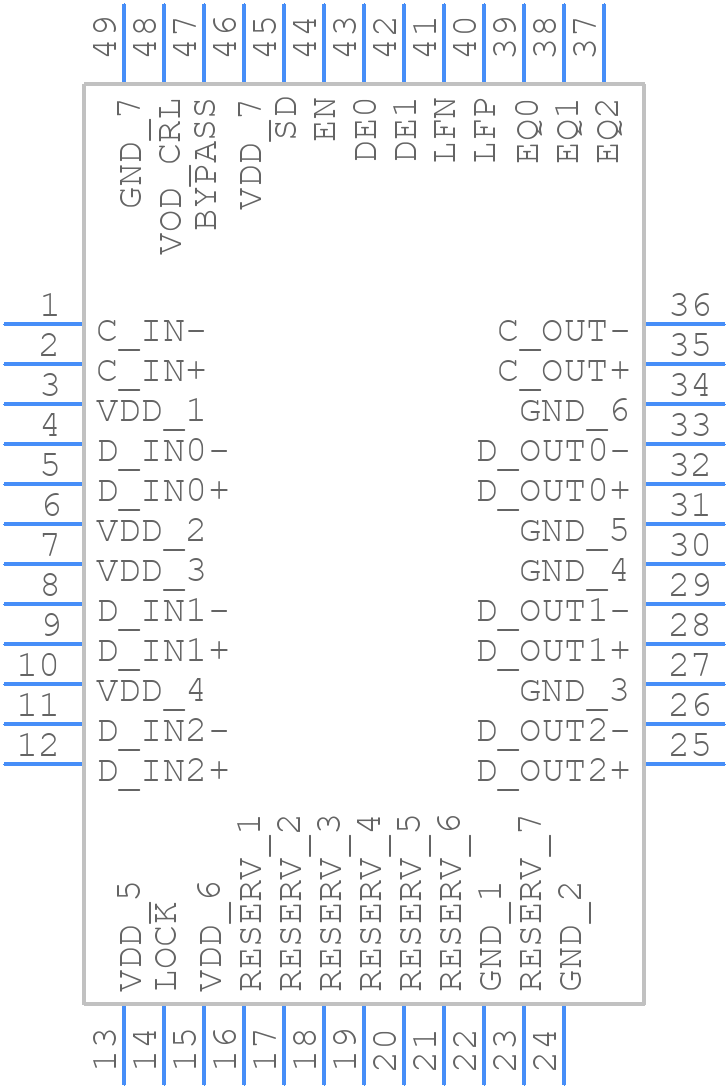

Use the download button to access the DS22EV5110SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS22E,
or try a keyword search, such as Other Consumer ICs
