A good PCB layout for the DS22EV5110SQE/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
To ensure proper termination, use a 50-ohm termination resistor in series with the signal line, and a 50-ohm termination resistor to ground in parallel with the signal line. This will help to reduce signal reflections and improve signal integrity.
The recommended power-up sequence is to apply the analog power supply (AVCC) first, followed by the digital power supply (DVCC). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up conditions.
To handle thermal management, ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Additionally, avoid blocking the airflow around the device, and ensure that the PCB is designed to dissipate heat efficiently.
The recommended clock signal quality is a low-jitter, high-frequency clock signal with a frequency range of 100 MHz to 1.5 GHz. The clock signal should have a rise time of less than 1 ns and a fall time of less than 1 ns.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS22EV5110SQE/NOPB Overview

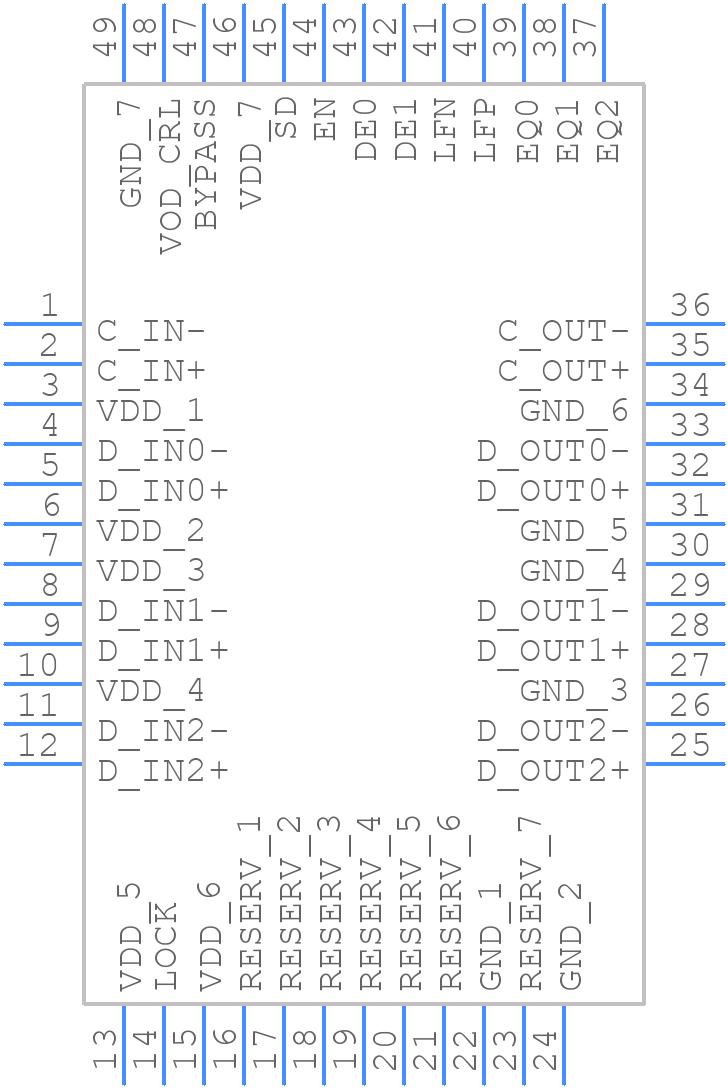

Use the download button to access the DS22EV5110SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS22E,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
