Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure signal integrity, use a controlled impedance PCB, route signals differentially, and use termination resistors at the receiver end. Also, consider using a signal integrity analysis tool to simulate and optimize the design.
The maximum cable length supported by the DS250DF230ZLSR depends on the specific application and the type of cable used. As a general guideline, the datasheet recommends a maximum cable length of 10 meters for a 10-Gbps signal. However, it's recommended to consult with a signal integrity expert or perform simulations to determine the maximum cable length for a specific design.
To troubleshoot issues with the DS250DF230ZLSR, start by checking the power supply and clock signals. Use an oscilloscope to verify the signal integrity and check for any signal degradation or distortion. Also, consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Yes, the DS250DF230ZLSR can be used in non-PCIe applications, but it's essential to ensure that the device is properly configured and the signal integrity is maintained. Consult the datasheet and application notes for guidance on using the device in non-PCIe applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS250DF230ZLSR Overview

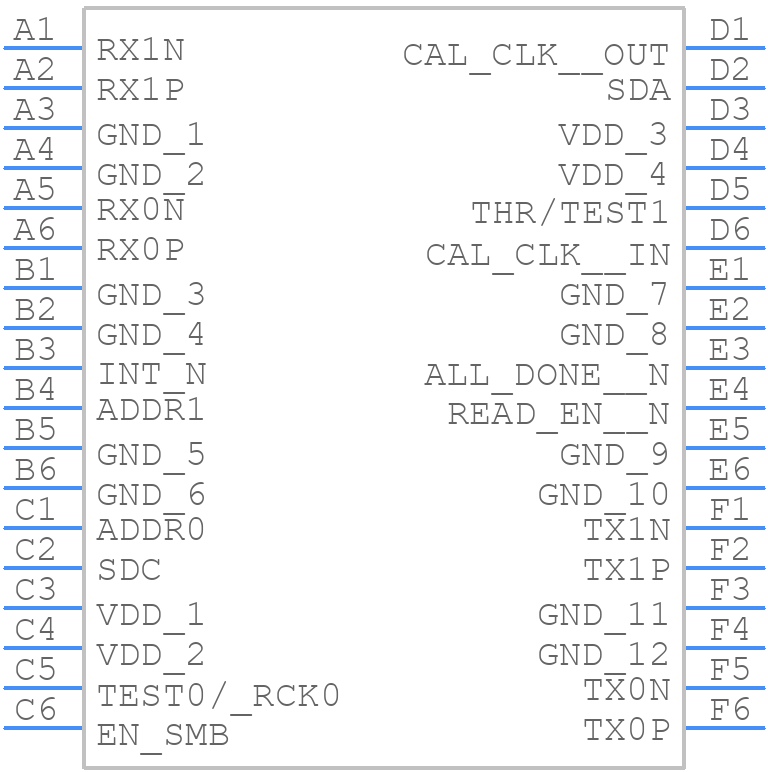

Use the download button to access the DS250DF230ZLSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS250,
or try a keyword search, such as Other Interface ICs
