DS250DF810ABVT - Texas Instruments

Description: 25 Gbps Multi-Rate 8-Channel Retimer

Download DS250DF810ABVT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

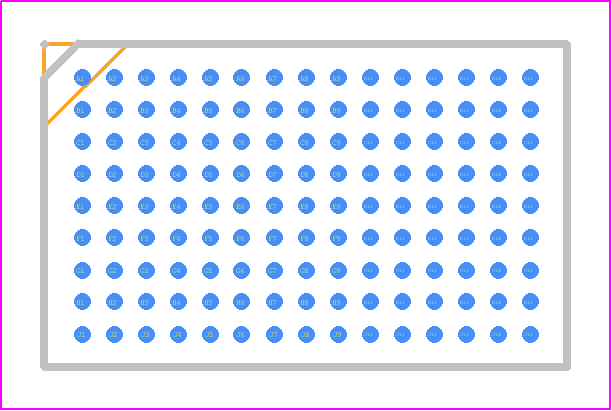

DS250DF810ABVT - Texas Instruments PCB footprint - BGA - BGA - ABV0135A
click to zoom
3D Models
DS250DF810ABVT - Texas Instruments  - 3D model - BGA - ABV0135A
click to zoom

DS250DF810ABVT Details

  • Manufacturer Part Number:

    DS250DF810ABVT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    RETIMER

  • JESD-30 Code:

    R-PBGA-B135

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    135

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

DS250DF810ABVT Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the DS250DF810ABVT is -40°C to 125°C.
  • To ensure signal integrity, use controlled impedance traces, maintain a consistent signal return path, and minimize vias and stubs on the PCB. Additionally, use a common mode filter or a differential filter to reduce electromagnetic interference (EMI).
  • The recommended PCB layout for the DS250DF810ABVT involves using a 4-layer stack-up with a solid ground plane, placing the device near the connector, and using a symmetrical layout for the high-speed lanes. Also, ensure that the PCB material has a low dielectric loss tangent to minimize signal attenuation.
  • To troubleshoot issues with the DS250DF810ABVT, use an oscilloscope to analyze the signal quality, check for proper power supply and ground connections, and verify that the device is properly configured. Also, consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The power sequencing requirements for the DS250DF810ABVT involve powering up the device in the following order: VCC, then VCCIO, and finally the input signals. Ensure that the power supplies are stable and within the recommended voltage range before applying input signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS250DF810ABVT Overview

Use the download button to access the DS250DF810ABVT schematic symbol, PCB footprint, and 3D model.
