A good PCB layout for the DS25BR100TSD/NOPB involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
To ensure proper thermal management, it's recommended to provide a heat sink or a thermal pad on the exposed pad of the device. The heat sink or thermal pad should be connected to a solid ground plane to dissipate heat efficiently. Additionally, ensure good airflow around the device to prevent overheating.
Operating the DS25BR100TSD/NOPB beyond its recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to operate the device within its recommended operating conditions to ensure optimal performance and reliability.
To troubleshoot issues with the DS25BR100TSD/NOPB, start by verifying the power supply voltage, input signal integrity, and output load conditions. Check for any signs of overheating, and ensure the device is properly soldered and connected. If issues persist, consult the datasheet and application notes for guidance or contact Texas Instruments support.
The DS25BR100TSD/NOPB is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional qualification and testing. It's recommended to consult with Texas Instruments and conduct thorough testing and validation to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS25BR100TSD/NOPB Overview

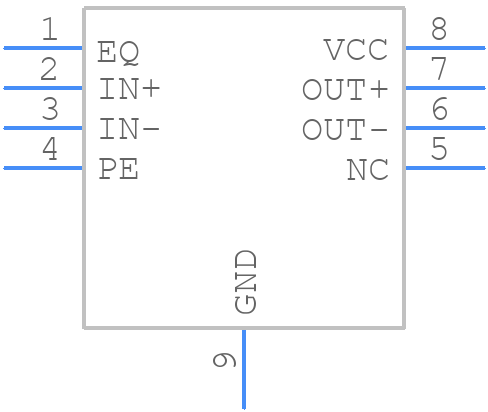

Use the download button to access the DS25BR100TSD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS25B,
or try a keyword search, such as Line Driver or Receivers
