Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines.
To ensure signal integrity, use a signal integrity analysis tool to simulate the signal transmission and identify potential issues. Also, follow best practices for high-speed design, such as using differential signaling, terminating transmission lines, and minimizing crosstalk.
The maximum cable length supported by the DS25BR101TSDX/NOPB depends on the specific application and the type of cable used. As a general rule, the maximum cable length is limited by the signal attenuation and dispersion characteristics of the cable. Texas Instruments recommends using cables with a maximum length of 10 meters for optimal performance.
The DS25BR101TSDX/NOPB is a SATA-compliant device, and it's recommended to use it in SATA-compliant applications to ensure optimal performance and compatibility. However, it may be possible to use it in non-compliant SATA applications with careful design and testing, but this is not recommended and may void the warranty.
To troubleshoot issues with the DS25BR101TSDX/NOPB, start by reviewing the datasheet and application notes to ensure that the device is being used correctly. Then, use a logic analyzer or oscilloscope to capture and analyze the signals, and check for common issues such as signal integrity problems, incorrect termination, or power supply issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS25BR101TSDX/NOPB Overview

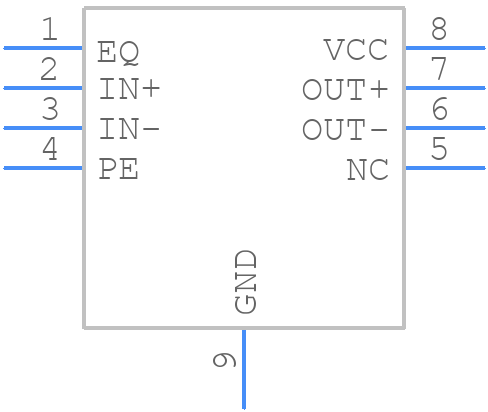

Use the download button to access the DS25BR101TSDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS25B,
or try a keyword search, such as Line Driver or Receivers
