A good PCB layout for the DS25BR204TSQ/NOPB involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Texas Instruments provides a recommended PCB layout in their application notes.
To ensure signal integrity, use controlled impedance traces, minimize trace lengths, and use termination resistors to match the impedance of the transmission line. Additionally, use a common mode filter or a differential filter to reduce electromagnetic interference (EMI).
The maximum cable length supported by the DS25BR204TSQ/NOPB depends on the specific application and the type of cable used. As a general guideline, the device supports cable lengths up to 10 meters at 2.5 Gbps and up to 5 meters at 4 Gbps. However, it's recommended to consult the datasheet and application notes for specific guidance.
To troubleshoot issues with the DS25BR204TSQ/NOPB, use an oscilloscope to analyze the signal waveform and check for signal degradation, jitter, or noise. Verify that the device is properly terminated and that the power supply is stable. Consult the datasheet and application notes for specific troubleshooting guidelines.
Yes, the DS25BR204TSQ/NOPB can be used in a redundant or fault-tolerant system. The device has built-in features such as hot swap capability and redundant channel support, making it suitable for high-reliability applications. Consult the datasheet and application notes for specific guidance on implementing redundancy and fault tolerance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS25BR204TSQ/NOPB Overview

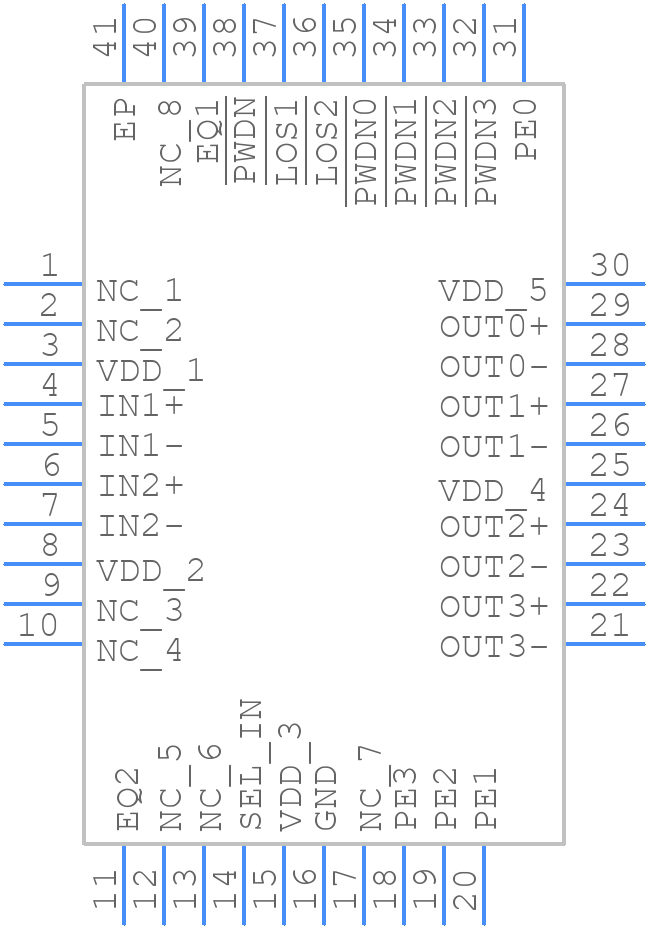

Use the download button to access the DS25BR204TSQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS25B,
or try a keyword search, such as Line Driver or Receivers
