DS25CP152QSQ/NOPB - Texas Instruments

Description: Automotive 3.125 Gbps LVDS 2x2 Crosspoint Switch

Download DS25CP152QSQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

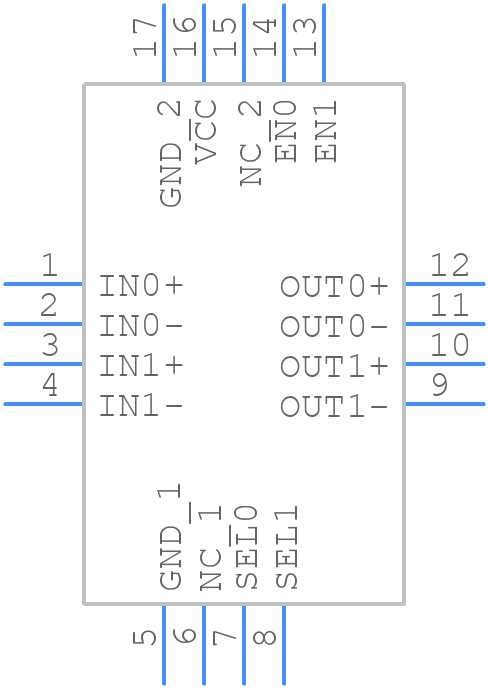

DS25CP152QSQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS25CP152QSQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGH0016A 2021
click to zoom
3D Models
DS25CP152QSQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RGH0016A 2021
click to zoom

DS25CP152QSQ/NOPB Details

  • Manufacturer Part Number:

    DS25CP152QSQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    60 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    77 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    20000 ns

  • Switch-on Time-Max:

    20000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DS25CP152QSQ/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the DS25CP152QSQ/NOPB involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure signal integrity, use controlled impedance traces, keep signal traces short and away from noise sources, and use termination resistors as needed. Also, ensure that the PCB material has a low dielectric loss tangent to minimize signal attenuation.
  • The maximum cable length supported by the DS25CP152QSQ/NOPB depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at 1 Gbps and up to 40 meters at 3.2 Gbps.
  • To troubleshoot issues with the DS25CP152QSQ/NOPB, start by checking the power supply voltage and ensuring that it is within the recommended range. Then, check the signal integrity by monitoring the signal waveforms and checking for any signs of signal degradation. Use oscilloscopes and logic analyzers to debug the issue.
  • The DS25CP152QSQ/NOPB has a maximum junction temperature of 150°C. Ensure good airflow around the device, and use thermal vias and heat sinks as needed to keep the device temperature within the recommended range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS25CP152QSQ/NOPB Overview

Use the download button to access the DS25CP152QSQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS25C, or try a keyword search, such as Multiplexers or Switches
