Texas Instruments recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce signal reflections and noise. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as using a heat sink, providing adequate airflow, and keeping the device within its specified operating temperature range.
When using the DS25MB200TSQ/NOPB in a system with multiple clock domains, it is essential to ensure that the clock signals are properly synchronized and that the device is not subjected to clock domain crossing issues, which can cause data corruption or other errors.
To troubleshoot issues with the DS25MB200TSQ/NOPB, it is recommended to use oscilloscopes, logic analyzers, and other diagnostic tools to analyze the signal waveforms and identify the root cause of the problem. Additionally, reviewing the device's datasheet and application notes can provide valuable insights and troubleshooting guidance.
When using the DS25MB200TSQ/NOPB in a system with EMI or RFI, it is essential to follow proper EMI/RFI mitigation techniques, such as shielding, filtering, and grounding, to prevent interference with the device's operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS25MB200TSQ/NOPB Overview

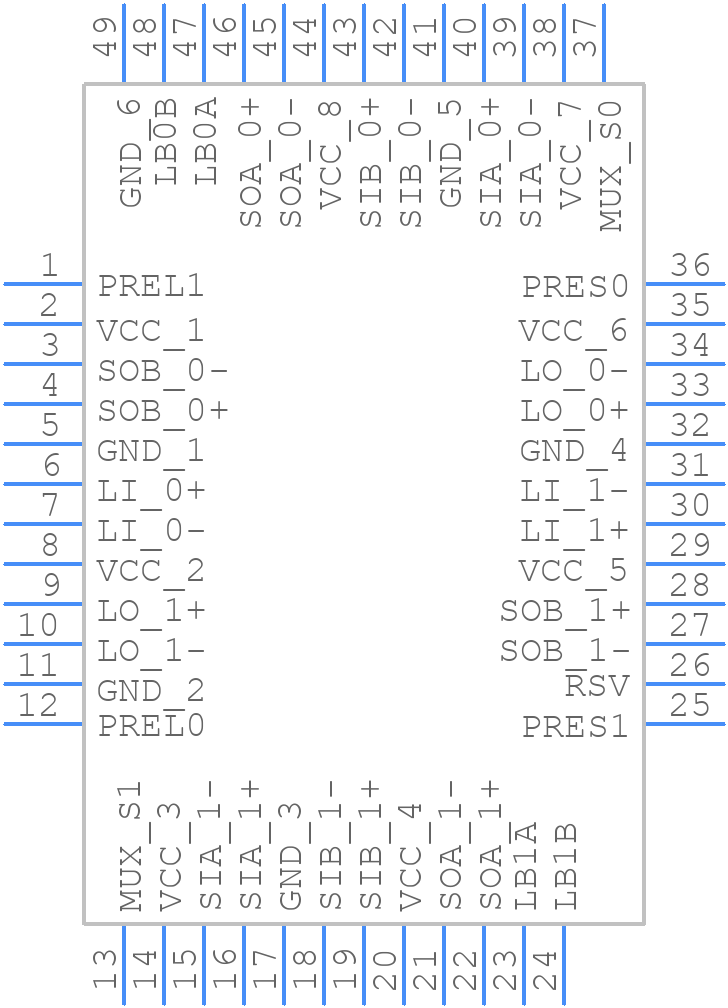

Use the download button to access the DS25MB200TSQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS25M,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
