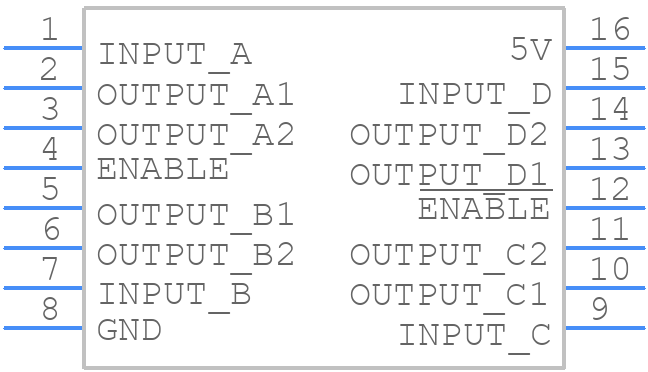

DS26LS31CN/NOPB - Texas Instruments

DS26LS31CN/NOPB Details

• Manufacturer Part Number:

  DS26LS31CN/NOPB

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

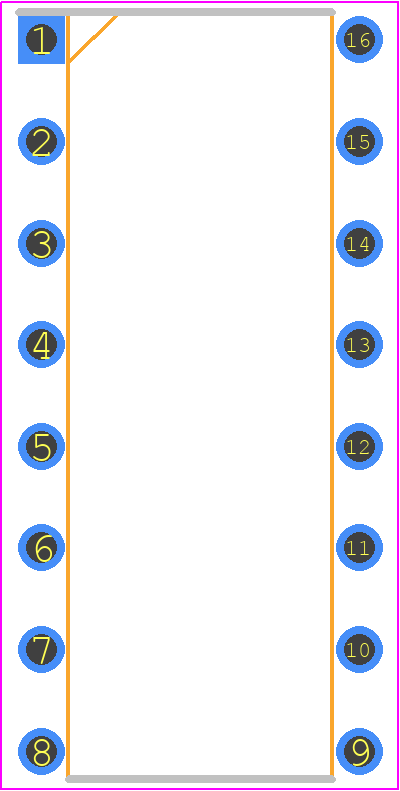

• Package Description:

  DIP-16

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Differential Output:

  YES

• Driver Number of Bits:

  4

• High Level Input Current-Max:

  0.00002 A

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LINE DRIVER

• Interface Standard:

  EIA-422; FED STD 1020

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e3

• Length:

  19.05 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  4

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Out Swing-Min:

  2 V

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.318 mm

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Transmit Delay-Max:

  15 ns

• Width:

  7.62 mm
