Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths. Additionally, consider using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the DS26LS32CMX operates within the specified temperature range (-40°C to 125°C), it's crucial to provide adequate heat sinking, especially in high-power applications. Use a thermal pad or a heat sink with a thermal conductivity of at least 1 W/m-K, and ensure good airflow around the device.
The maximum allowed voltage on the input pins is 5.5V. To protect against overvoltage, use voltage-limiting resistors or a voltage clamp circuit to prevent voltage exceeding the maximum rating. Additionally, consider using a TVS (Transient Voltage Suppressor) diode to protect against voltage spikes and transients.
To ensure proper operation, follow the recommended power-up and power-down sequencing in the datasheet. Power up the device in the following order: VCC, VREF, and then the input signals. When powering down, reverse the sequence. Additionally, consider using a power sequencing controller or a voltage supervisor to ensure proper power-up and power-down sequencing.
The recommended input impedance for the DS26LS32CMX is 1 kΩ or higher. A lower input impedance can lead to signal attenuation, distortion, and increased power consumption. Ensure that the input impedance is within the recommended range to maintain signal integrity and optimal device performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS26LS32CMX Overview

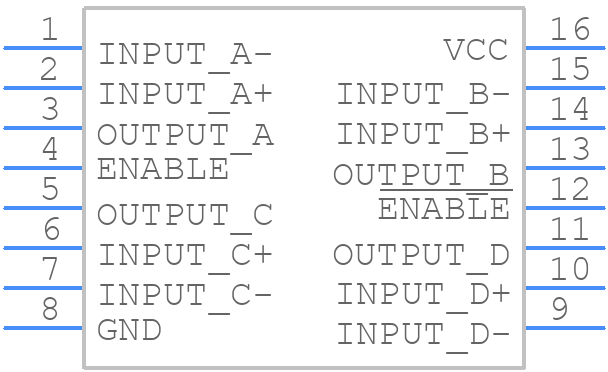

Use the download button to access the DS26LS32CMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS26L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
