A good PCB layout for the DS26LV31TMX involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded cable and twisting the data lines can help reduce EMI.
To ensure reliable data transmission over long distances, use a shielded cable, keep the cable length as short as possible, and use a repeater or a signal conditioner if necessary. Also, ensure that the transmitter and receiver are properly terminated and that the signal is not attenuated.
The maximum cable length supported by the DS26LV31TMX depends on the data rate and the type of cable used. As a general rule, the maximum cable length is around 100 meters at a data rate of 100 Mbps. However, this can be extended using repeaters or signal conditioners.
To troubleshoot issues with the DS26LV31TMX, start by checking the power supply and signal integrity. Use an oscilloscope to verify the signal quality and check for noise or distortion. Also, verify that the transmitter and receiver are properly configured and that the cable is not damaged.
Yes, the DS26LV31TMX can be used in a multi-drop configuration, but it requires careful consideration of the signal loading and termination. Ensure that the total capacitance of the bus does not exceed the recommended value, and use a repeater or signal conditioner if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS26LV31TMX Overview

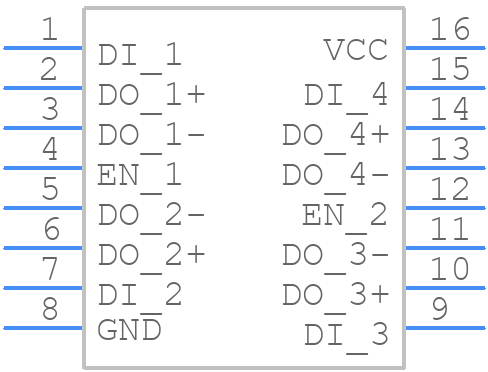

Use the download button to access the DS26LV31TMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS26L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
