Texas Instruments provides a recommended PCB layout in the DS280DF810ABWT evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The DS280DF810ABWT has a programmable input voltage range, which can be configured using the VREF pin and the internal voltage reference. Refer to the datasheet's 'Voltage Reference' section and the 'Configuration Register' section for more information.
The maximum cable length supported by the DS280DF810ABWT depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends keeping the cable length as short as possible (less than 10 inches) to minimize signal degradation and noise. For longer cable lengths, consider using a repeater or a signal conditioner.
To troubleshoot common issues, refer to the datasheet's 'Troubleshooting' section, which provides guidance on identifying and resolving common problems. Additionally, Texas Instruments offers a range of debugging tools and software, such as the DS280DF810ABWT evaluation module and the TI Precision Labs - Data Converters, which can help identify and resolve issues.
The DS280DF810ABWT has an operating temperature range of -40°C to 125°C. Temperature affects the device's performance, particularly in terms of accuracy and noise. Refer to the datasheet's 'Electrical Characteristics' section for more information on temperature-related specifications and performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS280DF810ABWT Overview

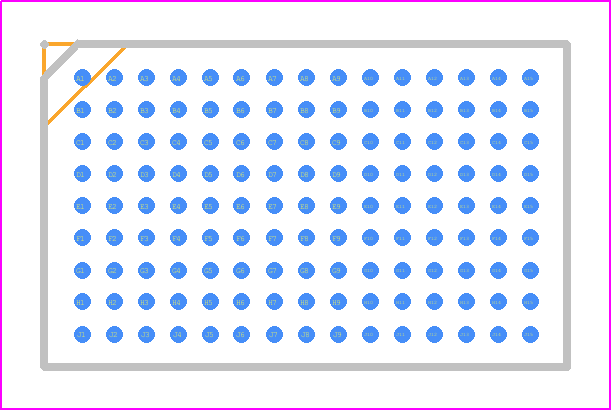

Use the download button to access the DS280DF810ABWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS280,
or try a keyword search, such as Other Interface ICs
