A good PCB layout for the DS30BA101SQ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The DS30BA101SQ requires a clean and stable power supply. Ensure that the power supply voltage is within the recommended range, and use a low-ESR capacitor (e.g., 0.1 μF) close to the device to decouple the power pins. Additionally, use a bulk capacitor (e.g., 10 μF) farther away from the device to filter out noise.
The DS30BA101SQ is capable of transmitting data at speeds up to 3.2 Gbps. However, the actual data rate achieved will depend on the quality of the signal, the length of the transmission line, and the receiver's capabilities.
To troubleshoot issues with the DS30BA101SQ, start by verifying that the power supply is within the recommended range and that the device is properly decoupled. Check the signal integrity using an oscilloscope, and ensure that the transmission line is properly terminated. If issues persist, consult the datasheet and application notes for guidance.
Yes, the DS30BA101SQ can be used in a multi-lane configuration to increase the overall data transfer rate. However, this requires careful planning and design to ensure that the lanes are properly synchronized and that the signals are properly routed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS30BA101SQ/NOPB Overview

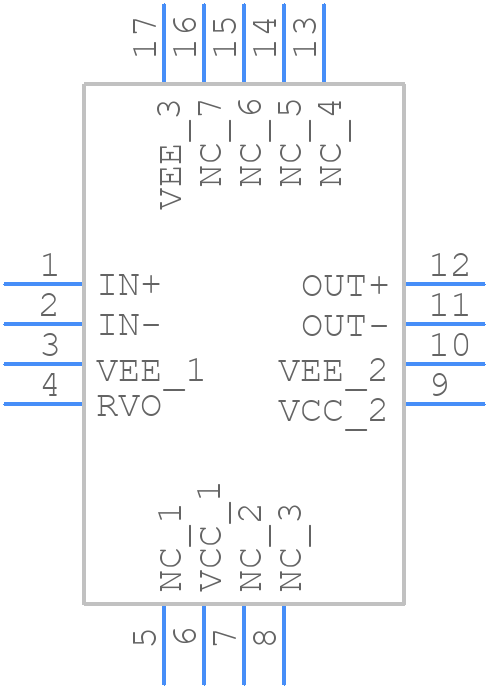

Use the download button to access the DS30BA101SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS30B,
or try a keyword search, such as Line Driver or Receivers
