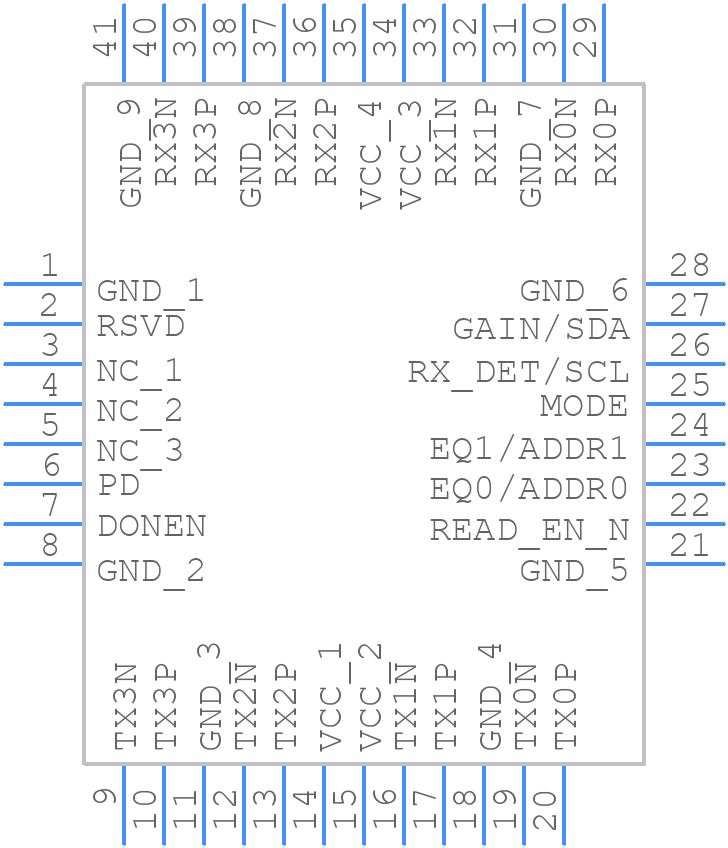

DS320PR410RNQT - Texas Instruments

DS320PR410RNQT Details

• Manufacturer Part Number:

  DS320PR410RNQT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WQFN-40

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Differential Output:

  YES

• Driver Number of Bits:

  4

• High Level Input Current-Max:

  0.00004 A

• Input Characteristics:

  DIFFERENTIAL

• Interface IC Type:

  LINE RECEIVER

• Interface Standard:

  GENERAL PURPOSE

• JESD-30 Code:

  R-PQCC-N40

• JESD-609 Code:

  e4

• Length:

  6 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  4

• Number of Functions:

  3

• Number of Terminals:

  40

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Low Current-Max:

  -0.004 A

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC40,.16X25,16

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Receive Delay-Max:

  0.13 ns

• Receiver Number of Bits:

  3

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Supply Voltage1-Max:

  3.6 V

• Supply Voltage1-Min:

  3 V

• Supply Voltage1-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Transmit Delay-Max:

  0.13 ns

• Width:

  4 mm
