A good PCB layout for the DS32EL0124SQE/NOPB involves keeping the clock input traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the clock source. Additionally, it's recommended to use a low-impedance clock source and to decouple the power supply pins with capacitors.
To ensure proper powering and decoupling of the DS32EL0124SQE/NOPB, use a low-ESR capacitor (e.g., 0.1 μF) between the VCC and GND pins, and a larger capacitor (e.g., 10 μF) in parallel to filter out noise. Also, ensure the power supply voltage is within the recommended range of 2.97 V to 3.63 V.
The DS32EL0124SQE/NOPB can handle clock frequencies up to 125 MHz. However, the maximum frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information.
The DS32EL0124SQE/NOPB can be configured for a specific clock output frequency by programming the internal PLL and divider settings. Refer to the datasheet and application notes for more information on how to calculate the required settings for a specific frequency.
The typical power consumption of the DS32EL0124SQE/NOPB is around 20 mA at 3.3 V and 125 MHz clock frequency. However, the actual power consumption may vary depending on the specific application, clock frequency, and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS32EL0124SQE/NOPB Overview

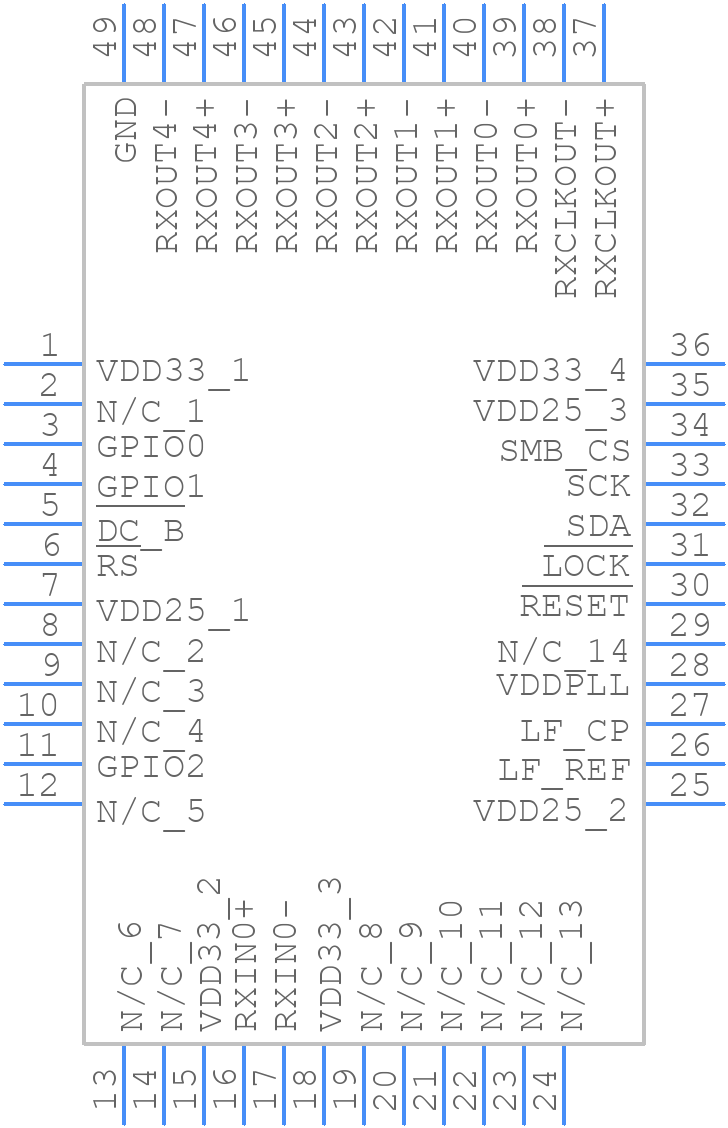

Use the download button to access the DS32EL0124SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS32E,
or try a keyword search, such as Line Driver or Receivers
