A good PCB layout for the DS32EL0421SQE/NOPB involves keeping the clock and data lines as short as possible, using a solid ground plane, and minimizing the number of vias and layer changes. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation of the DS32EL0421SQE/NOPB in high-temperature environments, it's essential to provide adequate heat sinking, ensure good airflow, and avoid exceeding the maximum junction temperature (TJ) of 150°C. Additionally, consider using thermal interface materials and thermal vias to improve heat dissipation.
The recommended termination resistors for the DS32EL0421SQE/NOPB are 50-ohm resistors for the clock and data lines. These resistors help to reduce signal reflections and improve signal integrity.
To troubleshoot issues with the DS32EL0421SQE/NOPB, use an oscilloscope to analyze the clock and data signals, checking for signal integrity, jitter, and skew. Also, verify that the power supply voltage and decoupling capacitors are adequate, and ensure that the PCB layout is optimal.
The DS32EL0421SQE/NOPB is not a radiation-hardened device, and it's not suitable for use in high-radiation environments. If you need a radiation-hardened device, consider using a different part number that is specifically designed for radiation-hardened applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS32EL0421SQE/NOPB Overview

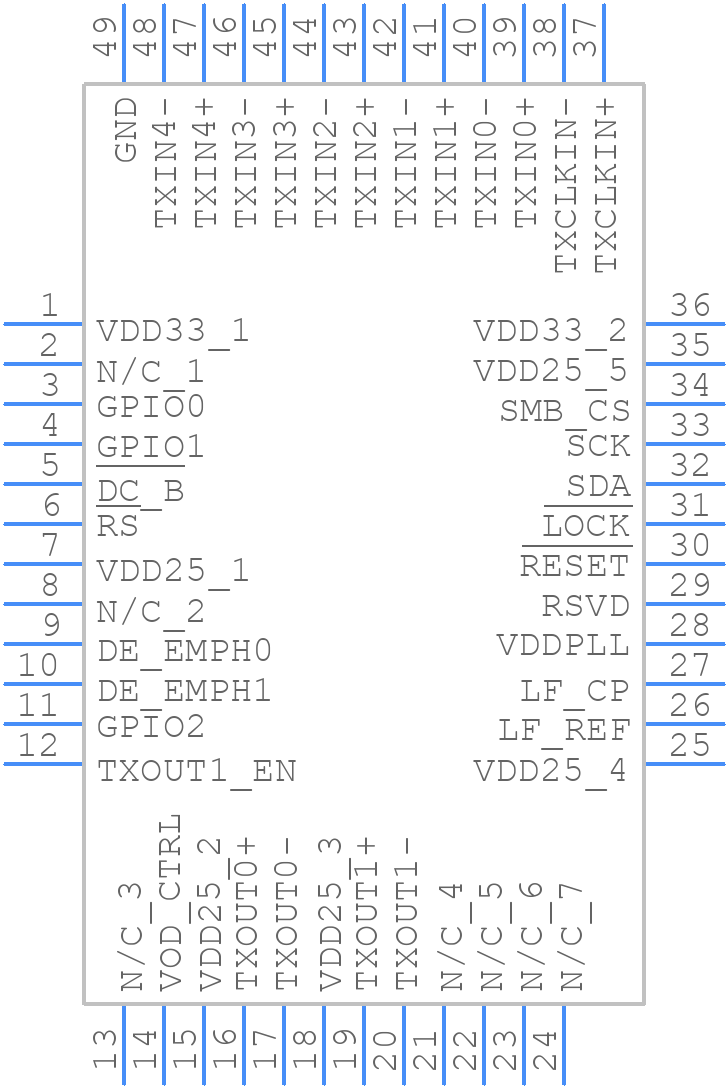

Use the download button to access the DS32EL0421SQE/NOPB schematic symbol, PCB footprint, and 3D model.
