Texas Instruments provides a recommended PCB layout in the device's datasheet and application notes. It's essential to follow these guidelines to minimize signal reflections, crosstalk, and electromagnetic interference (EMI). A good layout should include a solid ground plane, short signal traces, and adequate decoupling capacitors.
Proper termination is critical to prevent signal reflections and ensure signal integrity. The DS32EV100SD/NOPB requires a 100-ohm differential termination resistor at the receiver end. Additionally, the transmitter should be AC-coupled to the receiver using a capacitor, and the signal traces should be impedance-matched to 100 ohms.
The maximum cable length supported by the DS32EV100SD/NOPB depends on the signal frequency, cable quality, and environment. As a general guideline, the device can support cable lengths up to 10 meters at 100 Mbps and 5 meters at 400 Mbps. However, it's recommended to perform signal integrity analysis and testing to determine the maximum cable length for a specific application.
To troubleshoot signal integrity issues, use an oscilloscope to capture eye diagrams and measure signal amplitude, rise time, and fall time. Check for signal reflections, crosstalk, and jitter. Verify that the PCB layout and termination meet the recommended guidelines. Also, ensure that the power supply is clean and stable, and that the device is properly configured and initialized.
The DS32EV100SD/NOPB is designed for point-to-point connections and is not recommended for multi-point or daisy-chain configurations. This is because the device uses a proprietary encoding scheme and requires a dedicated connection between the transmitter and receiver. Multi-point or daisy-chain configurations can lead to signal degradation, errors, and reduced reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS32EV100SD/NOPB Overview

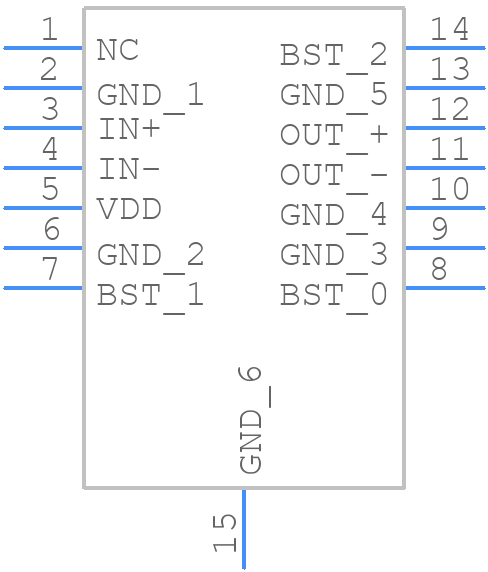

Use the download button to access the DS32EV100SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS32E,
or try a keyword search, such as Analog Transmission Interfaces
