- Part Number DS34C86TM
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - d(r-pdso-g16)
- Released Date Apr 16, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DS34C86TM Details
-
Manufacturer Part Number:
DS34C86TM
-
Brand Name:
Texas Instruments
-
Part Life Cycle Code:
Obsolete
-
Package Description:
SOIC-16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Input Characteristics:
DIFFERENTIAL SCHMITT TRIGGER
-
Interface IC Type:
LINE RECEIVER
-
Interface Standard:
EIA-422; EIA-423; FED STD 1020; FED STD 1030
DS34C86TM Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces short and away from the clock and data lines. Additionally, use a common mode choke and ferrite beads to filter out noise.
-
Use a shielded twisted pair cable, and consider using a repeater or a signal conditioner to boost the signal. Also, ensure the transmitter and receiver are properly terminated, and the cable is properly shielded and grounded.
-
The maximum cable length depends on the data rate and cable quality. As a general guideline, the DS34C86TM supports up to 100 meters at 100 Mbps, but this can be extended to 200 meters or more with the use of repeaters or signal conditioners.
-
Use an oscilloscope to monitor the signal quality and check for noise, jitter, or distortion. Verify the transmitter and receiver are properly configured, and the cable is properly terminated. Also, check the power supply and ensure it is within the recommended specifications.
-
Yes, the DS34C86TM supports multi-drop configurations. Connect multiple receivers to a single transmitter, and use a common clock signal. Ensure each receiver has a unique address, and use a protocol like RS-485 to manage data transmission and reception.
Trust Checks
Community Provided
System Verified
Community Approved
DS34C86TM Overview

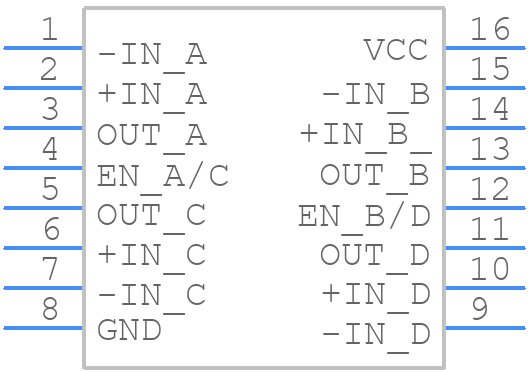

Use the download button to access the DS34C86TM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS34C,
or try a keyword search, such as Line Driver or Receivers
