Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-separated to reduce crosstalk.
The DS34LV86TMX requires a specific power-up and power-down sequencing to ensure proper operation. The VCC pin should be powered up before the VEE pin, and the VEE pin should be powered down before the VCC pin. This sequencing helps prevent latch-up and ensures reliable operation.
The maximum cable length supported by the DS34LV86TMX depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 10 meters at a data rate of 1 Gbps. For longer cable lengths, repeaters or active cables may be necessary.
To troubleshoot signal integrity issues, use a high-speed oscilloscope to measure the signal quality at the input and output of the device. Check for signal attenuation, jitter, and ringing. Ensure that the PCB layout and termination are correct, and that the device is properly powered and configured.
Yes, the DS34LV86TMX can be used in non-PCIe applications, such as SATA, SAS, or custom high-speed interfaces. However, the device's configuration and pinout may need to be modified to accommodate the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS34LV86TMX Overview

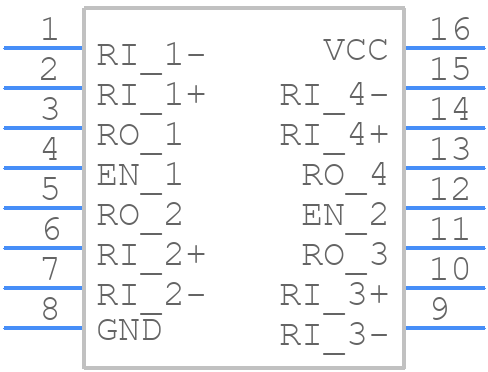

Use the download button to access the DS34LV86TMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS34L,
or try a keyword search, such as Line Driver or Receivers
