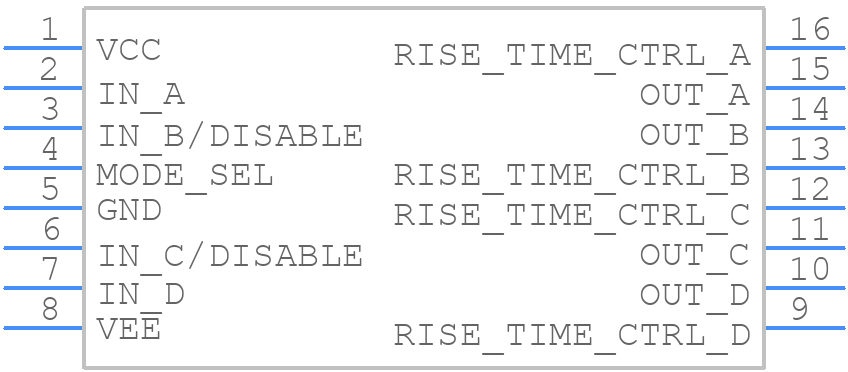

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DS3691M
- Part Number DS3691M
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P620X175-16N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
DS3691M Details
-
Manufacturer Part Number:
DS3691M
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
PLASTIC, MS-012AC, SOIC-16
-
Pin Count:
16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
DS3691M Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended layout and routing guide in the DS3691M evaluation module documentation. It's essential to follow these guidelines to ensure proper operation and minimize noise and EMI issues.
-
To optimize the DS3691M for low power consumption, ensure that the input voltage is within the recommended range, use the lowest possible clock frequency, and enable the power-saving features such as the auto-shutdown mode. Additionally, consider using a low-power mode for the output drivers.
-
The maximum cable length supported by the DS3691M depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length below 10 meters to ensure reliable operation. For longer cable lengths, consider using repeaters or active cables.
-
To troubleshoot issues with the DS3691M, start by verifying the power supply and clock signals. Check the input voltage, clock frequency, and signal integrity. Use oscilloscopes or logic analyzers to monitor the signals and identify any anomalies. Consult the datasheet and application notes for specific troubleshooting guidelines.
-
The DS3691M is rated for operation up to 85°C. However, for high-temperature environments above 85°C, consider using a heat sink or a thermally enhanced package. Ensure that the device is properly derated and follow the recommended thermal management guidelines to prevent overheating and ensure reliable operation.
Trust Checks
System Verified
DS3691M Overview
Use the download button to access the DS3691M schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DS369,
or try a keyword search, such as Line Driver or Receivers
