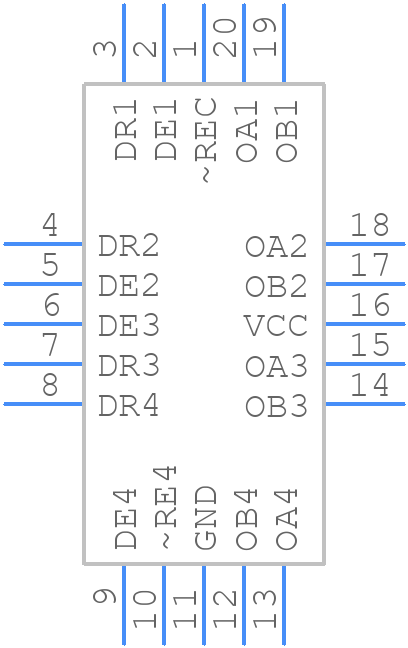

DS36950V - Texas Instruments

DS36950V Details

• Manufacturer Part Number:

  DS36950V

• Pbfree Code:

  No

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QLCC

• Package Description:

  QCCJ, LDCC20,.4SQ

• Pin Count:

  20

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  COMMON I/O; 4 RECEIVERS ACTIVE UNDER SHUTDOWN; TRISTATABLE RECEIVERS; INDIVIDUAL DRIVER ENABLES

• Differential Output:

  YES

• Driver Number of Bits:

  4

• High Level Input Current-Max:

  0.00002 A

• Input Characteristics:

  DIFFERENTIAL SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-485

• JESD-30 Code:

  S-PQCC-J20

• JESD-609 Code:

  e0

• Length:

  8.89 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  4

• Number of Terminals:

  20

• Operating Temperature-Max:

  70 °C

• Out Swing-Min:

  1.5 V

• Output Low Current-Max:

  0.004 A

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC20,.4SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  220

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  19 ns

• Receiver Number of Bits:

  4

• Seated Height-Max:

  4.57 mm

• Supply Current-Max:

  90 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn85Pb15)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Transmit Delay-Max:

  19 ns

• Width:

  8.89 mm
