COMMON I/O; 1 RECEIVER ACTIVE UNDER SHUTDOWN; TRISTATABLE RECEIVER
Differential Output:
YES
Driver Number of Bits:
1
High Level Input Current-Max:
0.00002 A
Input Characteristics:
DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
EIA-422; EIA-485
JESD-30 Code:
R-PDIP-T8
JESD-609 Code:
e0
Length:
9.817 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
70 °C
Out Swing-Min:
1.5 V
Output Low Current-Max:
0.016 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP8,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Receive Delay-Max:
37 ns
Receiver Number of Bits:
1
Seated Height-Max:
5.08 mm
Supply Current-Max:
60 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
TIN LEAD
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Transmit Delay-Max:
22 ns
Width:
7.62 mm
DS3695TN Frequently Asked Questions (FAQs)
Texas Instruments recommends following a star-topology layout for the device, with the DS3695TN at the center. This helps to minimize noise and ensure signal integrity. Additionally, it's recommended to use a solid ground plane, and to route the clock and data lines as differential pairs to reduce electromagnetic interference (EMI).
The DS3695TN requires a stable power supply with minimal noise and ripple. It's recommended to use a low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR) to ensure a clean power supply. Additionally, decoupling capacitors should be placed as close as possible to the device's power pins, with a recommended value of 0.1uF to 1uF.
The maximum clock frequency for the DS3695TN is 100 MHz, but it's recommended to operate the device at a frequency below 80 MHz to ensure reliable operation and minimize jitter.
The DS3695TN can be configured for different data rates and protocols using the device's control pins and registers. The device supports multiple data rates, including 100 Mbps, 500 Mbps, and 1 Gbps, and can be configured for different protocols such as Ethernet, Fibre Channel, and InfiniBand. Refer to the device's datasheet and application notes for specific configuration details.
The DS3695TN has a maximum junction temperature of 150°C, and it's recommended to keep the device's operating temperature below 125°C to ensure reliable operation. Thermal vias and heat sinks can be used to dissipate heat and reduce the device's operating temperature.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DS3695TN Overview

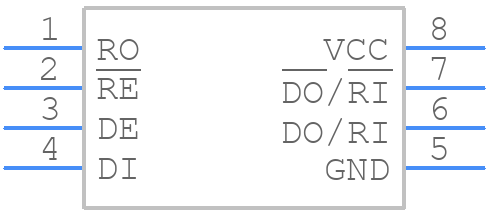

Use the download button to access the DS3695TN schematic symbol, PCB footprint, and 3D model.
