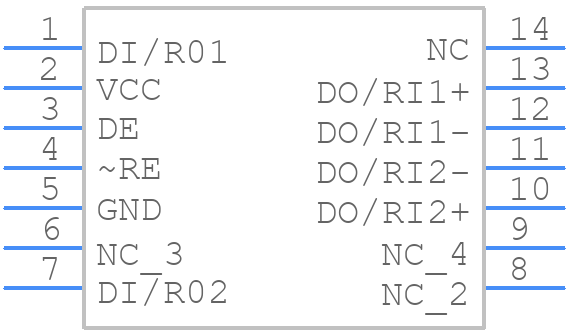

DS36C200M - Texas Instruments

DS36C200M Details

• Manufacturer Part Number:

  DS36C200M

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  0.150 INCH, PLASTIC, SOIC-14

• Pin Count:

  14

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Differential Output:

  YES

• Driver Number of Bits:

  2

• High Level Input Current-Max:

  0.00001 A

• Input Characteristics:

  DIFFERENTIAL

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  IEEE 1394

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e0

• Length:

  8.65 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Terminals:

  14

• Operating Temperature-Max:

  70 °C

• Out Swing-Min:

  0.172 V

• Output Low Current-Max:

  0.002 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  235

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  9 ns

• Receiver Number of Bits:

  2

• Seated Height-Max:

  1.75 mm

• Supply Current-Max:

  17 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Transmit Delay-Max:

  5.5 ns

• Width:

  3.9 mm
