- Part Number DS36C278M
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X175-8N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
DS36C278M Details
-
Manufacturer Part Number:
DS36C278M
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
0.150 INCH, SOIC-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Differential Output:
YES
DS36C278M Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the DS36C278M datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping sensitive analog signals away from digital signals.
-
To ensure accurate temperature measurement, it's crucial to follow proper thermal design guidelines, such as using a thermally conductive material for the PCB, minimizing thermal gradients, and calibrating the device according to the datasheet instructions.
-
The maximum cable length for the DS36C278M's differential output depends on the specific application and the signal frequency. As a general rule, keep the cable length as short as possible (less than 10 inches) to minimize signal degradation and noise pickup.
-
Yes, the DS36C278M is designed to operate in high-vibration environments. However, it's essential to follow proper mounting and mechanical design guidelines to ensure the device's reliability and accuracy.
-
To minimize EMI, use proper shielding, grounding, and filtering techniques. Ensure that the device is placed in a shielded enclosure, and use twisted-pair or shielded cables for the differential output. Additionally, follow good PCB design practices to minimize radiation and susceptibility to EMI.
Trust Checks
System Verified
DS36C278M Overview

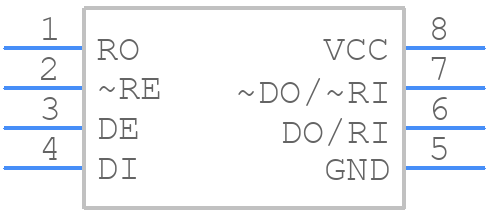

Use the download button to access the DS36C278M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS36C,
or try a keyword search, such as Line Driver or Receivers
