Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure signal integrity, use a signal integrity analysis tool to simulate the signal transmission and reception. Also, follow the recommended PCB layout, use proper termination, and consider using signal conditioning components such as resistors, capacitors, or filters.
The DS42MB200TSQ/NOPB has an operating temperature range of -40°C to 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
Follow the recommended power sequencing and supply voltage ramps in the datasheet. Generally, it's recommended to power up the device's supplies in a specific order, and to ramp up the supply voltage slowly to prevent damage or malfunction.
The DS42MB200TSQ/NOPB has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, follow the recommended operating conditions and avoid exceeding the maximum ratings.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS42MB200TSQ/NOPB Overview

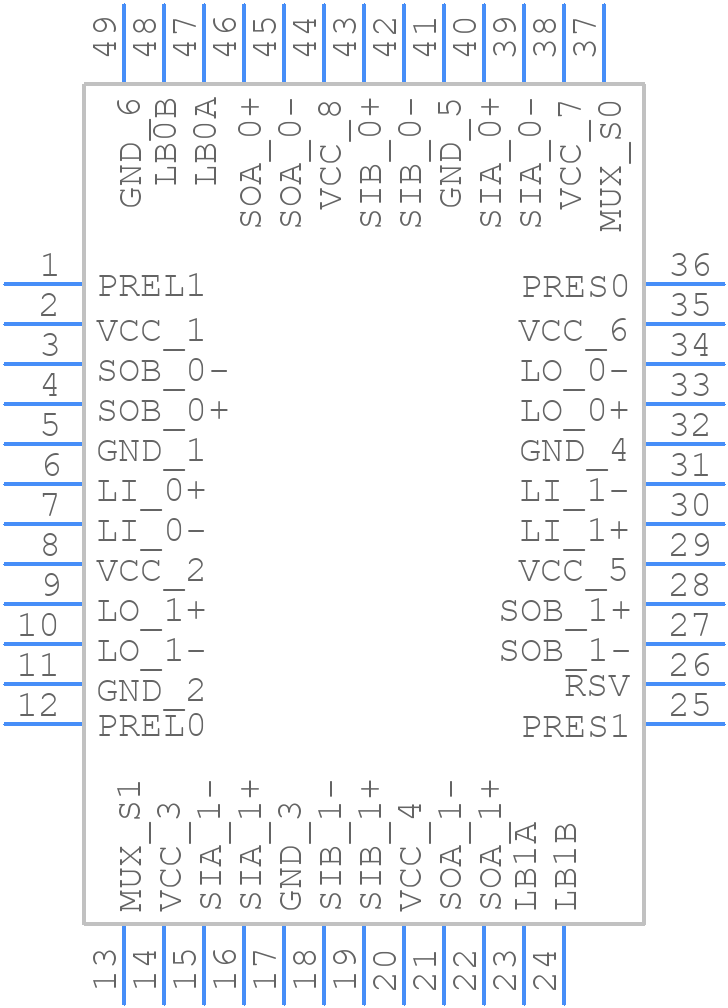

Use the download button to access the DS42MB200TSQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS42M,
or try a keyword search, such as Multiplexer/Demultiplexers
