Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure signal integrity, use a well-designed PCB with controlled impedance, minimize signal reflections, and use termination resistors as recommended in the datasheet. Additionally, consider using signal conditioning components, such as filters or equalizers, to improve signal quality.
The maximum operating temperature range for the DS64BR111SQ/NOPB is -40°C to 85°C, but it's recommended to operate within the recommended operating temperature range of 0°C to 70°C for optimal performance and reliability.
To troubleshoot issues with the DS64BR111SQ/NOPB, use a logic analyzer or oscilloscope to capture and analyze the signal waveforms. Check for signal reflections, impedance mismatches, and power supply noise. Also, verify that the device is properly configured and that the input signals meet the recommended specifications.
The DS64BR111SQ/NOPB is not specifically designed for radiation-hardened or high-reliability applications. However, Texas Instruments offers other products that are designed for such applications. It's recommended to consult with Texas Instruments or a qualified radiation effects engineer to determine the suitability of the DS64BR111SQ/NOPB or alternative products for such applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS64BR111SQ/NOPB Overview

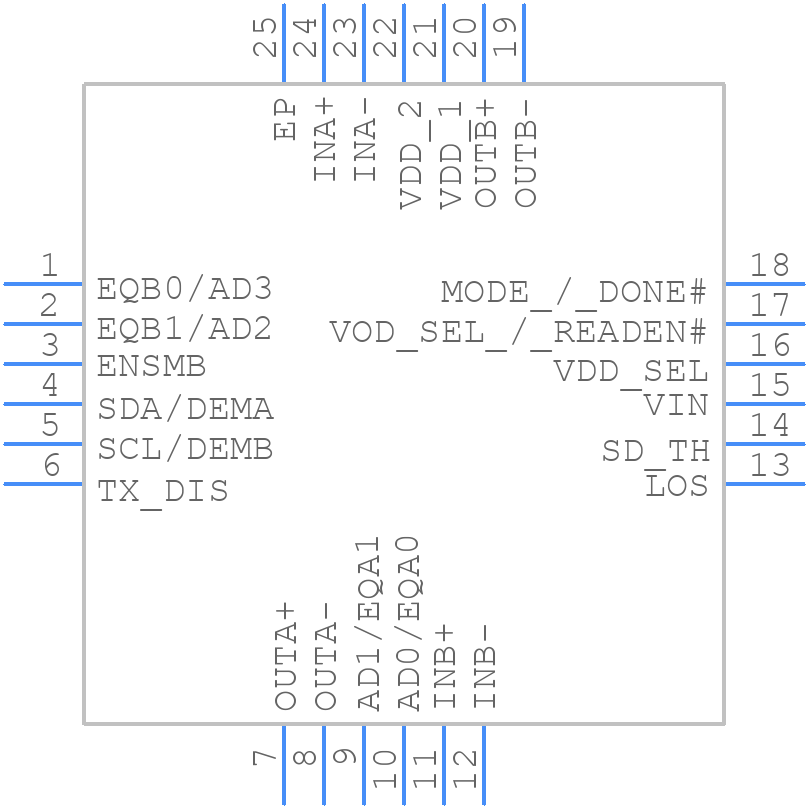

Use the download button to access the DS64BR111SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS64B,
or try a keyword search, such as Line Driver or Receivers
