COMMON I/O; 1 RECEIVER ACTIVE UNDER SHUTDOWN; TRISTATABLE RECEIVER
Differential Output:
YES
Driver Number of Bits:
1
High Level Input Current-Max:
0.00002 A
Input Characteristics:
DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
EIA-485; EIA-422
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
70 °C
Out Swing-Min:
1.5 V
Output Low Current-Max:
0.016 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Receive Delay-Max:
37 ns
Receiver Number of Bits:
1
Seated Height-Max:
1.75 mm
Supply Current-Max:
55 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transmit Delay-Max:
22 ns
Width:
3.9 mm
DS75176BM/NOPB Frequently Asked Questions (FAQs)
For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane, and to place thermal vias under the device to dissipate heat efficiently.
To ensure reliable operation across the entire operating temperature range, it is essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe junction temperature.
Using a lower voltage supply than recommended may result in reduced performance, increased power consumption, or even device malfunction. Using a higher voltage supply than recommended can lead to overheating, reduced lifespan, or even device failure. It is crucial to adhere to the recommended voltage supply range for optimal performance and reliability.
To troubleshoot issues related to signal integrity and jitter, use oscilloscopes or signal analyzers to measure signal quality, and verify that the device is properly terminated and matched to the transmission line. Also, ensure that the power supply is clean and stable, and that the device is operated within the recommended specifications.
The DS75176BM/NOPB has built-in ESD protection, but it is still essential to follow proper handling and assembly procedures to prevent damage. Additionally, ensure that the device is properly connected to a ground plane, and that the power supply is decoupled to prevent latch-up.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS75176BM/NOPB Overview

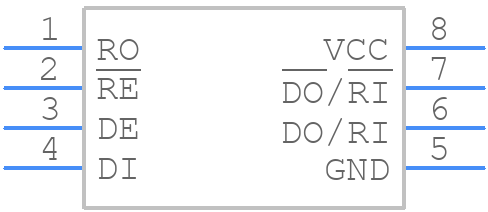

Use the download button to access the DS75176BM/NOPB schematic symbol, PCB footprint, and 3D model.
