2 RECEIVERS ACTIVE UNDER SHUTDOWN; TRISTATABLE RECEIVERS
Differential Output:
YES
Driver Number of Bits:
2
High Level Input Current-Max:
0.00002 A
Input Characteristics:
DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
EIA-422; ESDI; ST412; ST506
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e0
Length:
9.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
2
Number of Terminals:
16
Operating Temperature-Max:
70 °C
Out Swing-Min:
2.5 V
Output Low Current-Max:
0.008 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
235
Qualification Status:
Not Qualified
Receive Delay-Max:
20 ns
Receiver Number of Bits:
2
Seated Height-Max:
1.75 mm
Supply Current-Max:
78 mA
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
TIN LEAD
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
20
Transmit Delay-Max:
15 ns
Width:
3.9 mm
DS8923AM Frequently Asked Questions (FAQs)
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital sections separate. Use short, direct traces for the analog inputs and outputs, and avoid crossing digital signals over the analog section.
To ensure accurate temperature measurement, use a thermocouple with a high-quality junction, and ensure good thermal contact between the thermocouple and the DS8923AM. Also, calibrate the device according to the datasheet, and consider using a cold junction compensation (CJC) circuit.
The maximum cable length for the analog output is typically around 10-15 feet (3-4.5 meters). If a longer cable is needed, consider using a shielded cable, and add a buffer amplifier or an isolation amplifier to maintain signal integrity.
The DS8923AM has a built-in POR and BOR. To handle these, ensure a stable power supply, and add a capacitor to the VCC pin to filter out noise. Also, consider adding a reset supervisor or a voltage monitor to detect and respond to power-on and brown-out events.
Calibrate the ADC by applying a known input voltage and adjusting the offset and gain registers according to the datasheet. Use a high-precision voltage reference, and consider using an external calibration circuit or a calibration potentiometer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS8923AM Overview

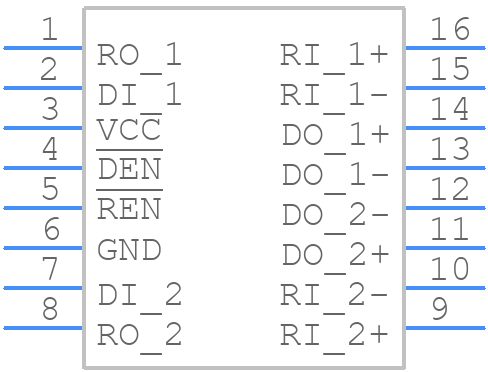

Use the download button to access the DS8923AM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS892,
or try a keyword search, such as Line Driver or Receivers
