DS8923AMX/NOPB - Texas Instruments

Description: Bus Receivers TRI-STATE RS-422 Dual Diff Line Dvrs

Download DS8923AMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

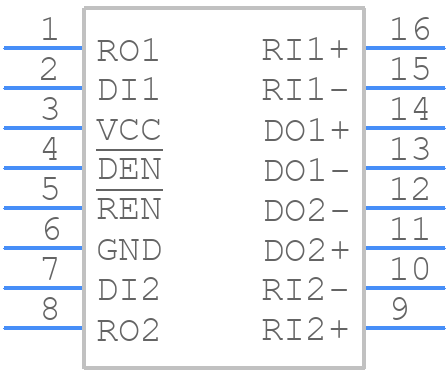

DS8923AMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS8923AMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
DS8923AMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

DS8923AMX/NOPB Details

  • Manufacturer Part Number:

    DS8923AMX/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.150 INCH, PLASTIC, SOP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    2 RECEIVERS ACTIVE UNDER SHUTDOWN; TRISTATABLE RECEIVERS

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; ESDI; ST412; ST506

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    20 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    15 ns

  • Width:

    3.9 mm

DS8923AMX/NOPB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DS8923AMX/NOPB is -40°C to 85°C.
  • To ensure reliable data transmission over long distances, use twisted-pair or shielded cables, and consider using repeaters or line drivers to boost the signal. Additionally, follow proper termination and impedance matching techniques.
  • The maximum cable length supported by the DS8923AMX/NOPB depends on the specific application and cable characteristics. As a general guideline, the maximum cable length is approximately 100 meters (328 feet) for a single-ended transmission line.
  • To troubleshoot issues with the DS8923AMX/NOPB, check the power supply voltage, signal integrity, and cable quality. Use oscilloscopes or logic analyzers to monitor the signal waveform and identify any anomalies. Also, verify that the device is properly configured and that the transmission protocol is correctly implemented.
  • Yes, the DS8923AMX/NOPB can be used in a multi-point or multi-drop configuration. However, it's essential to ensure that the total bus capacitance does not exceed the recommended maximum value, and that the transmission line is properly terminated to prevent signal reflections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS8923AMX/NOPB Overview

Use the download button to access the DS8923AMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS892, or try a keyword search, such as Line Driver or Receivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
