A good PCB layout for the DS90C124IVS/NOPB involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the connectors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable data transmission over long cables with the DS90C124IVS/NOPB, it's recommended to use shielded cables, keep the cable length as short as possible, and use cable equalization to compensate for signal attenuation. Additionally, the use of repeaters or active cables can help to extend the transmission distance.
The maximum cable length supported by the DS90C124IVS/NOPB depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 10 meters at a data rate of 1.5 Gbps, and up to 5 meters at a data rate of 3 Gbps.
To troubleshoot issues with the DS90C124IVS/NOPB, it's recommended to use a logic analyzer or an oscilloscope to monitor the device's output signals, check the power supply voltage and current, and verify that the device is properly configured and connected. Additionally, checking the device's temperature and ensuring that it is within the recommended operating range can also help to identify the root cause of the issue.
The DS90C124IVS/NOPB is rated for operation in temperatures ranging from -40°C to 85°C. However, it's recommended to derate the device's performance at higher temperatures, and to ensure that the device is properly heat-sinked to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90C124IVS/NOPB Overview

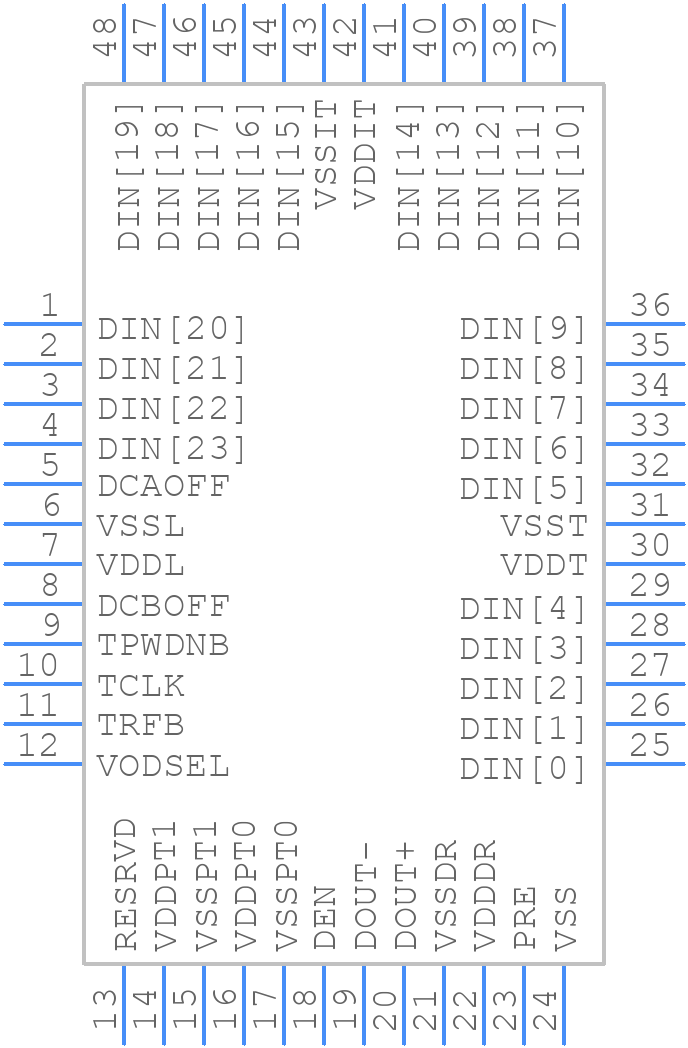

Use the download button to access the DS90C124IVS/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90C,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
