The maximum cable length supported by the DS90C124QVS/NOPB is approximately 10 meters (33 feet) at a data rate of 1.5 Gbps, and 5 meters (16 feet) at a data rate of 3 Gbps, assuming a good quality coaxial cable with a characteristic impedance of 75 ohms.
To ensure signal integrity and minimize EMI, it is recommended to follow proper PCB layout and design guidelines, such as using a solid ground plane, minimizing trace lengths and impedance mismatches, and using shielding and filtering techniques. Additionally, the DS90C124QVS/NOPB has built-in features such as differential signaling and common-mode filtering to help reduce EMI.
Yes, the DS90C124QVS/NOPB can be used in a multi-drop bus configuration, but it requires careful consideration of the bus topology, cable lengths, and termination resistors to ensure signal integrity and prevent reflections. TI provides application notes and design guides to help with this type of configuration.
The power consumption of the DS90C124QVS/NOPB depends on the operating frequency, data rate, and output load. Typical power consumption is around 250 mW at 1.5 Gbps and 350 mW at 3 Gbps. To reduce power consumption, consider using a lower operating frequency, reducing the output load, or using the device's power-down mode when not in use.
To troubleshoot issues with the DS90C124QVS/NOPB, start by checking the device's power supply, clock signals, and output loads. Use oscilloscopes and logic analyzers to verify signal integrity and data transmission. Check for proper termination, cable quality, and EMI shielding. Consult TI's application notes and technical support resources for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90C124QVS/NOPB Overview

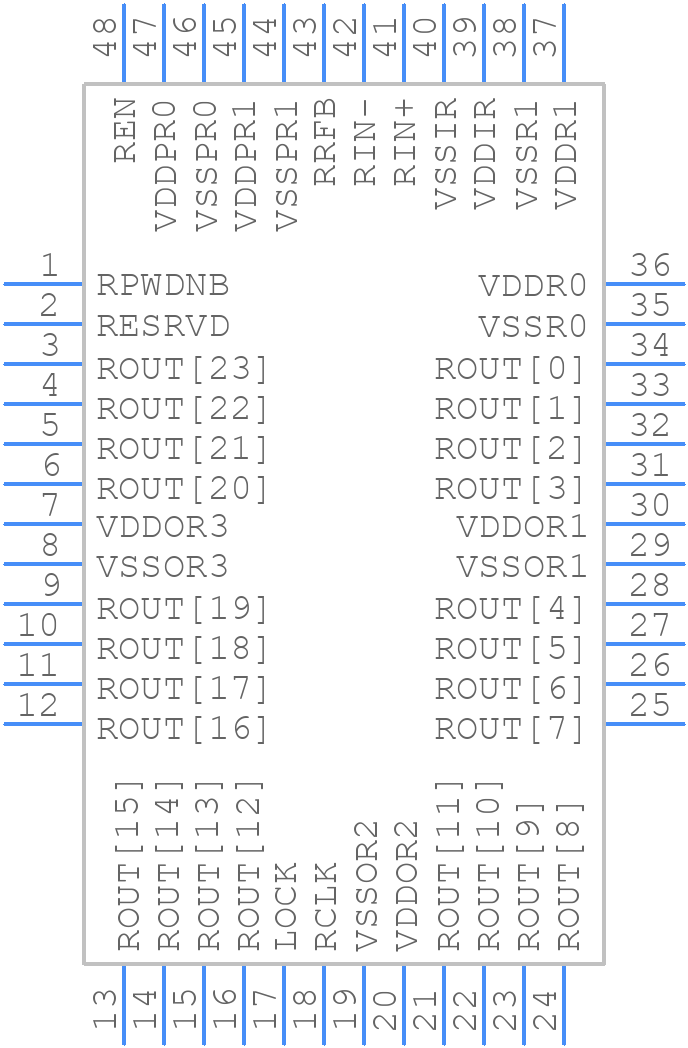

Use the download button to access the DS90C124QVS/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90C,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
