Texas Instruments provides a recommended PCB layout in the DS90C365AMT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management techniques, such as using a heat sink, thermal interface material, and ensuring good airflow. Additionally, the device should be operated within its specified temperature range and power dissipation limits.
The maximum cable length supported by the DS90C365AMT depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 10 meters at a data rate of 1 Gbps. For longer cable lengths, repeaters or active cables may be required.
To troubleshoot issues with the DS90C365AMT, engineers can use tools such as oscilloscopes, logic analyzers, and signal generators to analyze the signal quality and transmission. Additionally, Texas Instruments provides a range of debugging tools and software, including the DS90C365AMT EVM and the TI Vision SDK.
Yes, the DS90C365AMT is designed to be power-efficient and can be used in applications requiring low power consumption. The device has a low power consumption of 1.2 W at 1 Gbps and 2.4 W at 2 Gbps, making it suitable for battery-powered or power-constrained systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90C365AMT Overview

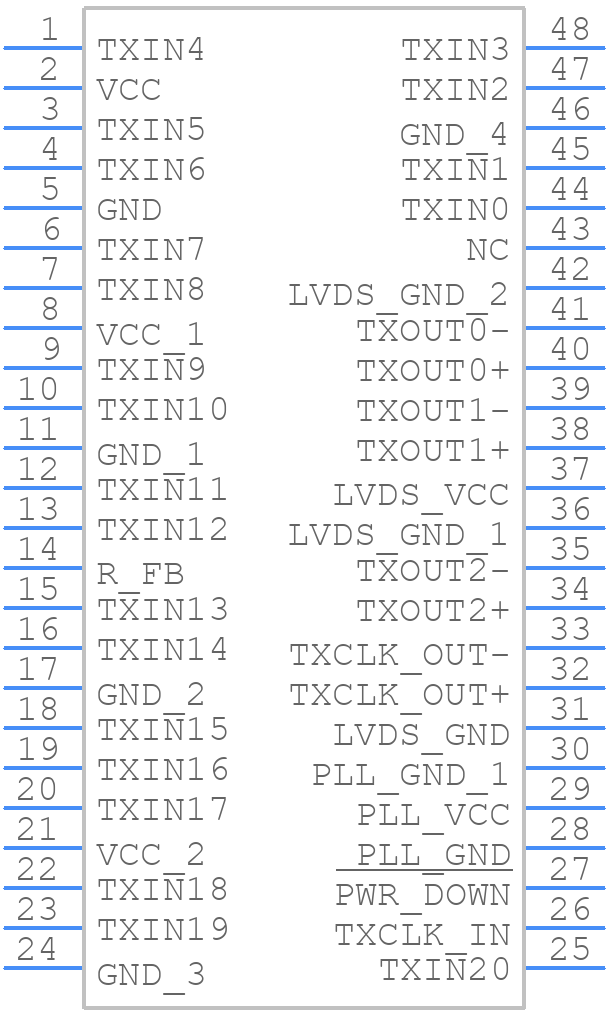

Use the download button to access the DS90C365AMT schematic symbol, PCB footprint, and 3D model.
