DS90CF366MTD/NOPB - Texas Instruments

Description: +3.3V LVDS Receiver 18-Bit Flat Panel Display (FPD) Link - 85 MHz

Download DS90CF366MTD/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

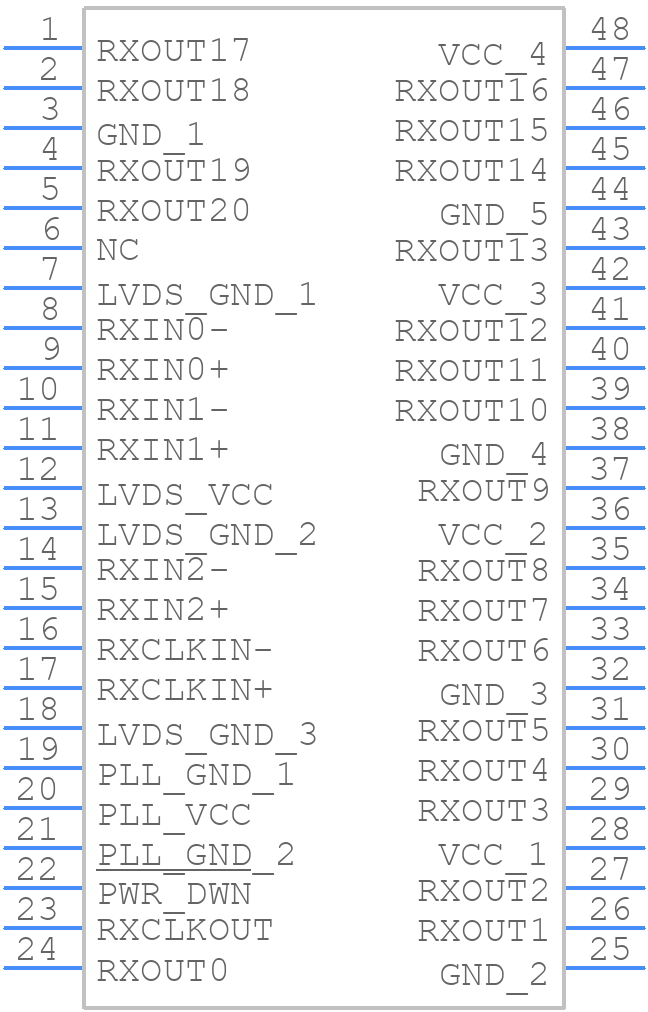

DS90CF366MTD/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS90CF366MTD/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGG (R-PDSO-G48)-A
click to zoom
3D Models
DS90CF366MTD/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGG (R-PDSO-G48)-A
click to zoom

DS90CF366MTD/NOPB Details

  • Manufacturer Part Number:

    DS90CF366MTD/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    NO

  • High Level Input Current-Max:

    0.000015 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    12.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Out Swing-Min:

    2.4 V

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    105 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

DS90CF366MTD/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide for the DS90CF366MTD/NOPB in the 'Layout' section of the datasheet. It's essential to follow this guide to ensure proper signal integrity and minimize electromagnetic interference (EMI).
  • The DS90CF366MTD/NOPB requires a specific power sequencing to prevent damage. The recommended power-up sequence is: 1) VCC, 2) VCCA, and 3) VCCIO. Ensure that VCC is stable before applying VCCA and VCCIO. Refer to the datasheet for more information.
  • The maximum cable length supported by the DS90CF366MTD/NOPB depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends keeping the cable length below 10 meters to ensure reliable data transmission. However, it's possible to use longer cables with proper signal conditioning and equalization.
  • To troubleshoot issues with the DS90CF366MTD/NOPB, start by checking the power supply voltages, clock signals, and data transmission lines. Use an oscilloscope to verify signal integrity and check for any signs of signal degradation or noise. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The DS90CF366MTD/NOPB is rated for operation up to 85°C. However, it's essential to ensure proper thermal management and heat dissipation to prevent overheating. Consult the datasheet for thermal characteristics and guidelines for high-temperature operation.
