DS90CF366MTDX/NOPB - Texas Instruments

Description: +3.3V LVDS Receiver 18-Bit Flat Panel Display (FPD) Link - 85 MHz

Download DS90CF366MTDX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

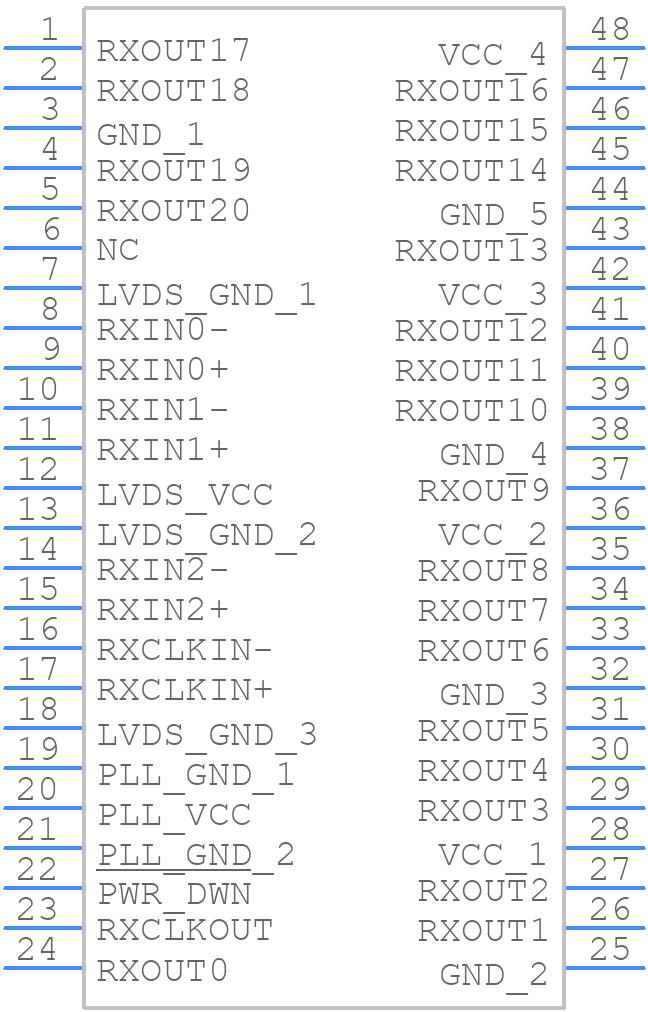

Symbol
DS90CF366MTDX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS90CF366MTDX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGG0048A
click to zoom
3D Models
DS90CF366MTDX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGG0048A
click to zoom

DS90CF366MTDX/NOPB Details

  • Manufacturer Part Number:

    DS90CF366MTDX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    NO

  • High Level Input Current-Max:

    0.000015 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    12.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Out Swing-Min:

    2.4 V

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    105 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

DS90CF366MTDX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide for the DS90CF366MTDX/NOPB in the 'Layout' section of the datasheet. It's essential to follow this guide to ensure proper signal integrity and minimize electromagnetic interference (EMI).
  • The DS90CF366MTDX/NOPB is a highly configurable device. Texas Instruments provides a configuration tool, the 'DS90CF366 Configurator,' which helps engineers configure the device for their specific application. The tool is available on the Texas Instruments website.
  • The maximum cable length supported by the DS90CF366MTDX/NOPB depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends a maximum cable length of 10 meters for FPD-Link III applications. However, this can be extended up to 30 meters with the use of repeaters or active cables.
  • Texas Instruments provides a troubleshooting guide for the DS90CF366MTDX/NOPB in the 'Troubleshooting' section of the datasheet. Engineers can also use the 'DS90CF366 EVM' evaluation module to test and debug their design. Additionally, Texas Instruments offers technical support through their website and support forums.
  • Yes, the DS90CF366MTDX/NOPB is compatible with other FPD-Link devices from Texas Instruments. It's designed to be backward compatible with previous generations of FPD-Link devices, ensuring seamless integration into existing systems.
