DS90CP02SP/NOPB - Texas Instruments

Description: 1.5 Gbps 2x2 LVDS Crosspoint Switch

Download DS90CP02SP/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

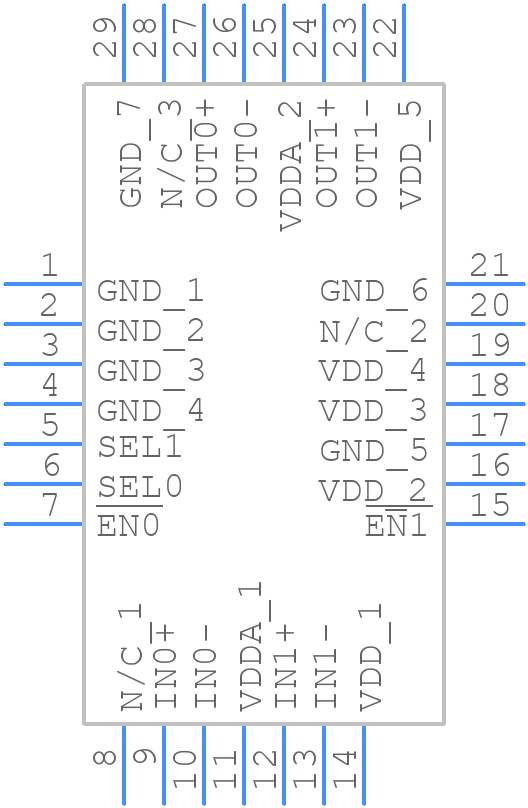

DS90CP02SP/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS90CP02SP/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NJD0028A
click to zoom
3D Models
DS90CP02SP/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - NJD0028A
click to zoom

DS90CP02SP/NOPB Details

  • Manufacturer Part Number:

    DS90CP02SP/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Off-state Isolation-Nom:

    60 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max (Isup):

    60 mA

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    150 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

DS90CP02SP/NOPB Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the DS90CP02SP/NOPB is approximately 10 meters (33 feet) at a data rate of 1 Gbps, but this can vary depending on the specific application and cable quality.
  • To ensure signal integrity, it's essential to follow proper PCB layout and design guidelines, use high-quality cables and connectors, and implement proper termination and filtering techniques. Additionally, the DS90CP02SP/NOPB has built-in features such as adaptive equalization and clock data recovery to help maintain signal integrity.
  • Yes, the DS90CP02SP/NOPB is designed to operate in industrial temperature ranges (-40°C to 85°C) and can withstand electromagnetic interference (EMI) and electrostatic discharge (ESD) events. However, it's essential to follow proper design and layout guidelines to ensure reliable operation in harsh environments.
  • The DS90CP02SP/NOPB can be configured for different data rates using the device's control pins and registers. The device supports data rates from 100 Mbps to 1 Gbps, and the specific configuration will depend on the application requirements and the device's operating mode.
  • The power consumption of the DS90CP02SP/NOPB varies depending on the device's operating mode and data rate. Typically, the device consumes around 150 mW at 1 Gbps, but this can be reduced to around 50 mW at lower data rates.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS90CP02SP/NOPB Overview

Use the download button to access the DS90CP02SP/NOPB schematic symbol, PCB footprint, and 3D model.
