A good PCB layout for the DS90CP22MT/NOPB involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the connectors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure signal integrity when using the DS90CP22MT/NOPB at high frequencies, it's essential to use a well-designed PCB with controlled impedance, minimize signal reflections, and use termination resistors to match the impedance of the transmission line. Additionally, using a low-jitter clock source and ensuring proper signal routing can help maintain signal integrity.
The maximum cable length supported by the DS90CP22MT/NOPB depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 10 meters at data rates of up to 1.5 Gbps. Longer cable lengths may be possible with the use of repeaters or active cables.
To troubleshoot issues with the DS90CP22MT/NOPB, start by checking the power supply voltage and ensuring that it's within the recommended range. Next, verify that the clock signal is stable and within the specified frequency range. Use an oscilloscope to check the signal integrity and look for signs of signal degradation or data corruption. If the issue persists, try swapping out the device or checking for any PCB layout issues.
Yes, the DS90CP22MT/NOPB can be used in a multi-drop bus configuration, but it's essential to ensure that the total capacitance of the bus does not exceed the recommended maximum value. Additionally, the device's output impedance should be matched to the characteristic impedance of the transmission line to minimize signal reflections.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90CP22MT/NOPB Overview

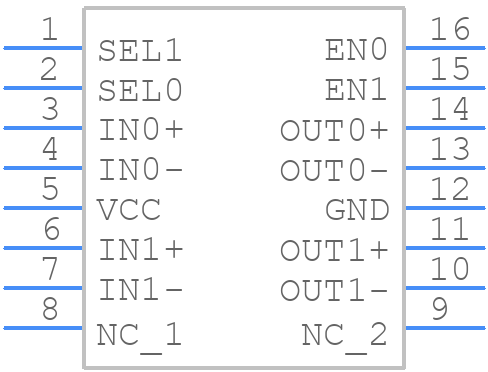

Use the download button to access the DS90CP22MT/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90C,
or try a keyword search, such as Multiplexers or Switches
