DS90CP22MTX/NOPB - Texas Instruments

Description: Digital Crosspoint Single 2x2 0.8Gbps 2:1 Mux/1:2 Demux Switch 16-Pin TSSOP T/R

Download DS90CP22MTX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

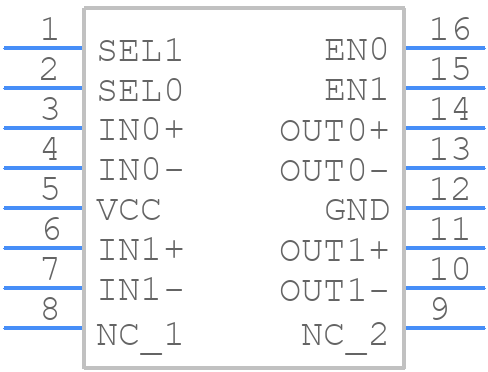

DS90CP22MTX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS90CP22MTX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A HEIGHT 1.2
click to zoom
3D Models
DS90CP22MTX/NOPB - Texas Instruments - 3D model - Small Outline Packages - PW0016A HEIGHT 1.2
click to zoom

DS90CP22MTX/NOPB Details

  • Manufacturer Part Number:

    DS90CP22MTX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    125 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    4.5 ns

  • Switch-on Time-Max:

    55 ns

  • Switching:

    MAKE-BEFORE-BREAK

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DS90CP22MTX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane and a separate power plane for the device. The device's thermal pad should be connected to the ground plane. A detailed layout guide is available in the application note 'DS90CP22MTX PCB Layout Guidelines' (SLUA533).
  • To ensure reliable operation in high-temperature environments, it is essential to provide adequate heat sinking and thermal management. The device's junction temperature (TJ) should be kept below 125°C. A heat sink or thermal pad can be used to dissipate heat. Additionally, the device's power consumption should be minimized by optimizing the clock frequency and voltage supply.
  • The maximum cable length supported by the DS90CP22MTX/NOPB depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 10 meters (33 feet) for FPD-Link III applications and up to 5 meters (16 feet) for OpenLDI applications.
  • To troubleshoot issues with the DS90CP22MTX/NOPB, start by verifying the power supply voltage and clock frequency. Check the device's output signals using an oscilloscope or logic analyzer. Consult the device's datasheet and application notes for troubleshooting guidelines and common issues. If the issue persists, contact Texas Instruments' support team for further assistance.
  • While the DS90CP22MTX/NOPB is optimized for FPD-Link III and OpenLDI applications, it can be used in other applications with proper design and testing. However, Texas Instruments does not provide explicit support for non-standard applications. It is essential to consult with Texas Instruments' support team and conduct thorough testing to ensure the device's reliability and performance in the target application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS90CP22MTX/NOPB Overview

Use the download button to access the DS90CP22MTX/NOPB schematic symbol, PCB footprint, and 3D model.
